Kubota L4310

The Kubota L4310 is a tractor produced by Kubota. It is equipped with a 134.1 ci 2.2 L engine. The listed engine power is Diesel (net): 43 hp / 32.1 kW; Diesel (gross): 45.3 hp / 33.8 kW. Transmission: Glide Shift (GST). Drive type: 4x2 2WD (L4310F). Operating weight: 2875 to 3520 pounds.

Overview

	1998 - 2002 Grand L10 SeriesCompact Utility tractor Grand L10 Series Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
L4310F	2WD
L4310DT	4WD gear
L4310GST	4WD Glide-Shift
L4310HST	hydro
L4310HSTC	hydro cab

Kubota L4310 Engine
Kubota 2.2L 4-cyl diesel
Engine details ...

Kubota L4310 Power
Engine (gross)	45.3 hp 33.8 kW
Engine (net)	43 hp 32.1 kW
Gear PTO (claimed)	37.5 hp 28.0 kW
Hydro PTO (claimed)	36 hp 26.8 kW

Mechanical
Drive	4x2 2WD (L4310F)
	4x4 MFWD 4WD
Steering	hydrostatic power
Wet disc brakes
Two-post ROPS. Cab optional.

Capacity
Fuel	9.2 gal 34.8 L
Hydraulic system	10.3 gal 39.0 L

Hydraulics
Type	open center
Capacity	10.3 gal 39.0 L
Pump flow	7.8 gpm 29.5 lpm
Steering flow	4.1 gpm 15.5 lpm

Tractor hitch
Rear Type	1
Control	position control and optional draft control
Rear lift (at 24"/610mm)	2,310 lbs 1047 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)

Dimensions & Tires
2WD Wheelbase	71.3 inches 181 cm
4WD Wheelbase	71.1 inches 180 cm
Weight	2875 to 3520 pounds
Front tire	6.00-16
Rear tire	14.9-24 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40 (ROPS)
	55 (cab)
Battery CCA	582
Battery volts	12

References
1999 Products published by Kubota
L3010/L3410/L3710/L4310 published in 1999, by Kubota
L3010/L3410/L3710/L4310 published in 1999, by Kubota
L3010/L3410/L3710/L4310/L4610 published in 2000, by Kubota

Engine

Engine Detail — 134.1 ci / 2.2 L Diesel

Manufacturer	Kubota E-TVCS
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	134.1 ci 2.2 L
Bore/Stroke	3.425x3.638 inches 87 x 92 mm
Power (net)	43 hp 32.1 kW
Power (gross)	45.3 hp 33.8 kW
Rated RPM	2600
Starter volts	12
Coolant capacity	7.88 qts 7.5 L

Transmission

Transmission options
8-speed mechanical shuttle
hydrostatic
8-speed automatic fully synchronized
16-speed creeper

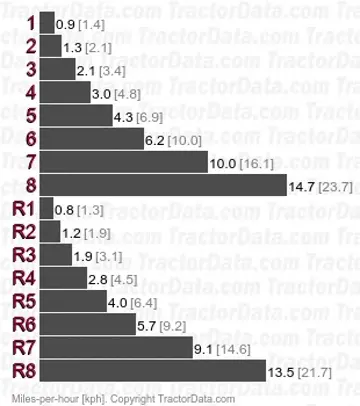

Transmission — FST

Transmission	FST
Type	mechanical shuttle
Gears	8 forward and reverse
Clutch	dry disc
Four synchronized gears in two ranges. Synchronized shuttle shifting.

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Transmission — Glide Shift (GST)

Transmission	Glide Shift (GST)
Type	automatic fully synchronized
Gears	8 forward and reverse
Clutch	dry disc
The Glide Shift allows clutchless automatic shifting between gears.

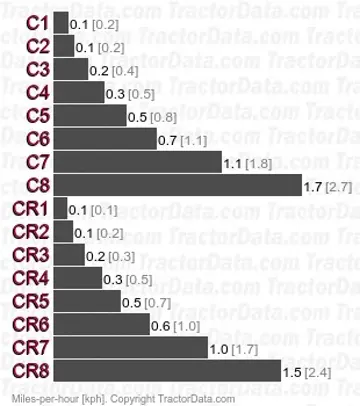

Transmission — 16 forward and reverse creeper

Type	creeper
Gears	16 forward and reverse
Optional creeper range available for the FST or GST transmission.

Dimensions

Kubota L4310 Tires
Standard tires (ag)	Front: 6.00-16. Rear: 14.9-24 (2WD)
	Front: 8.30-16. Rear: 14.9-24 (4WD)

Dimensions
2WD Wheelbase	71.3 inches 181 cm
4WD Wheelbase	71.1 inches 180 cm
2WD Length	118.9 inches 302 cm
4WD Length	117.5 inches 298 cm
Width	62.4 inches 158 cm
Height (ROPS)	84.8 inches 215 cm
Height (cab)	86.8 inches 220 cm
Ground clearance	15 inches 38 cm
Front tread	45.1/49/53/56.9 inches 114/124/134/144 cm (2WD)
Front tread	45.5 inches 115 cm (4WD)
Rear tread	46.5/47.2/51.2/57.1/60.8 inches 118/119/130/145/154 cm

Kubota L4310 Weight
	2,875 lbs (2WD) 1304 kg
	3,030 lbs (FST) 1374 kg
	3,040 lbs (GST) 1378 kg
	3,060 lbs (Hydro) 1388 kg
	3,520 lbs (cab) 1596 kg

Attachments

Attachment overview
Blade
Front-end loader
Backhoe
Advertised attachments for the L4310 included 72-inch rear-mount finish mowers (RCR72-CA) and rotary cutters (L372CA), tillers (FL1521C, L60CA), post-hole diggers (BL80A), and box scrapers (L7554).

Kubota BL4690 Backhoe
Backhoe type	Kubota BL4690 Backhoe
Bucket width	10 inches 25 cm
	12 inches 30 cm
	16 inches 40 cm
	24 inches 60 cm
Digging depth	90.2 inches 229 cm
Reach from pivot	116.5 inches 295 cm
Loading height	75.5 inches 191 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	2,950 lbs 1338 kg
Dipperstick force	1,740 lbs 789 kg
