Kubota M90
The Kubota M90 is a tractor produced by Kubota. It is equipped with a 284.7 ci 4.7 L engine. The rated power output is 88.8 hp 66.2 kW. Transmission: 24 forward and reverse. Operating weight: 7253 lbs 3289 kg.
Engine Power
88.8 hp
66.2 kW
Fuel & Capacities
39.6 gal
149.9 L
Transmission
24 forward and reverse
Operating Weight
7253 lbs
3289 kg
Kubota M90 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2002 - 2004
Grandom SeriesUtility tractor |
|---|---|
2002 - 2004 | |
Grandom Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota M90 Engine | |
|---|---|
Kubota 4.7L 4-cyl diesel | |
Fuel tank | 39.6 gal
149.9 L |
Engine details ...  | |
Kubota M90 Power | |
|---|---|
Engine | 88.8 hp
66.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and electronic draft control |
Rear lift | 6182 lbs
2804 kg |
8588 lbs*With optional lift cylinder.
3895 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2035 |
1000@2211 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 90.6 inches
230 cm |
Weight | 7253 lbs
3289 kg |
Front tire | 9.5-24 |
Rear tire | 13.9-36 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 284.7 ci / 4.7 L Diesel
Manufacturer | Kubota V4702 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 284.7 ci
4.7 L |
Bore/Stroke | 4.29x4.92 inches
109 x 125 mm |
Power | 88.8 hp
66.2 kW |
Fuel system | direct injection |
Rated RPM | 2400 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed synchromesh | |
16-speed power shift | |
24-speed creeper |
Transmission — 16 forward and reverse synchromesh
Type | synchromesh |
Gears | 16 forward and reverse |
Clutch | dry disc |
Four gears (1-4) in two ranges with additional high/low shift. | |
 | |

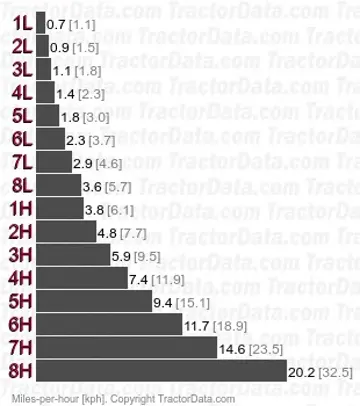

Transmission — 16 forward and reverse power shift
Type | power shift |
Gears | 16 forward and reverse |
Clutch | hydraulic wet disc |
Eight power-shift gears in two ranges with shuttle. | |
 | |
Transmission — 24 forward and reverse creeper
Type | creeper |
Gears | 24 forward and reverse |
1C:2C:3C:4C:5C:6C:7C:8C;:0.12:0.16:0.21:0.26:0.32:0.41:0.51:0.65 | |
Dimensions
Kubota M90 Tires | |
|---|---|
Standard tires (ag) | Front: 9.5-24. Rear: 13.9-36 |
Dimensions | |
|---|---|
Wheelbase | 90.6 inches
230 cm |
Length | 152.8 inches
388 cm |
Width | 74 inches
187 cm |
Height | 102.8 inches
261 cm |
Weight | 7253 lbs
3289 kg |
Ground clearance | 17.3 inches
43 cm |
Front tread | 52.4 to 59.8 inches
133 to 151 cm |
Rear tread | 52 to 75.6 inches
132 to 192 cm |
