Kubota M90A
The Kubota M90A is a tractor produced by Kubota. It is equipped with a 230 ci 3.8 L engine. The rated power output is 88.8 hp 66.2 kW. Transmission: 24 forward and reverse. Operating weight: 7782 lbs 3529 kg.
Engine Power
88.8 hp
66.2 kW
Fuel & Capacities
50.2 gal
190.0 L
Transmission
24 forward and reverse
Operating Weight
7782 lbs
3529 kg
Kubota M90A Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2009 - 2013
Grandom A SeriesUtility tractor |
|---|---|
2009 - 2013 | |
Grandom A Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota M90A Engine | |
|---|---|
Kubota 3.8L 4-cyl diesel | |
Fuel tank | 50.2 gal
190.0 L |
Engine details ...  | |
Kubota M90A Power | |
|---|---|
Engine | 88.8 hp
66.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and electronic draft control |
Rear lift | 8598 lbs
3900 kg |
11023 lbs*With optional lift cylinder.
5000 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540@2405 |
1000@2529 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 95.9 inches
243 cm |
Weight | 7782 lbs
3529 kg |
Front tire | 9.5-24 |
Rear tire | 12.4-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 230 ci / 3.8 L Diesel
Manufacturer | Kubota V3800-T |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 230 ci
3.8 L |
Bore/Stroke | 3.94x4.72 inches
100 x 120 mm |
Power | 88.8 hp
66.2 kW |
Fuel system | direct injection |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed power shift | |
24-speed creeper |

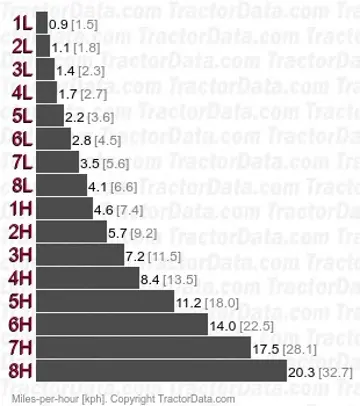

Transmission — 16 forward and reverse power shift
Type | power shift |
Gears | 16 forward and reverse |
Clutch | hydraulic wet disc |
Eight power-shift gears in two ranges with shuttle. | |
 | |
Transmission — 24 forward and reverse creeper
Type | creeper |
Gears | 24 forward and reverse |
Optional creeper adds an additional 8-speed range to the standard transmission. | |
 | |
Dimensions
Kubota M90A Tires | |
|---|---|
Standard tires (ag) | Front: 9.5-24. Rear: 12.4-38 |
Dimensions | |
|---|---|
Wheelbase | 95.9 inches
243 cm |
Length | 168.1 inches
426 cm |
Width | 72.6 inches
184 cm |
Height | 103.2 inches
262 cm |
Weight | 7782 lbs
3529 kg |
Ground clearance | 13.4 inches
34 cm |
Front tread | 52.4 to 59.8 inches
133 to 151 cm |
Rear tread | 52 to 75.6 inches
132 to 192 cm |
