Kubota MZ55

The Kubota MZ55 is a tractor produced by Kubota. It is equipped with a 202 ci 3.3 L engine. The rated power output is 54.2 hp 40.4 kW. Transmission: 24 forward and reverse. Operating weight: 5313 lbs 2409 kg.

Overview

	2006 - 2009 SynerZ SeriesUtility tractor
2006 - 2009
SynerZ Series
Utility tractor

Production
Manufacturer	Kubota
Utility tractor

Kubota MZ55 Engine
Kubota 3.3L 4-cyl diesel
Fuel tank	17.2 gal 65.1 L
Engine details ...

Kubota MZ55 Transmission
24-speed
Transmission details ...

Kubota MZ55 Power
Engine	54.2 hp 40.4 kW

Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Cab standard.

Tractor hitch
Rear Type	II/I
Control	position and draft control

Power Take-off (PTO)
Rear PTO Type	540 (1.375)*Three-speed PTO shift with available ground speed or reverse 540
Engine RPM	544@2400
	764@2400
	1080@2400

Dimensions & Tires
Wheelbase	80.7 inches 204 cm
Weight	5313 lbs 2409 kg
Front tire	8.3-20
Rear tire	12.4-32
Full dimensions and tires ...

Engine

Engine Detail — 202 ci / 3.3 L Diesel

Manufacturer	Kubota V3300
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	202 ci 3.3 L
Bore/Stroke	3.86x4.33 inches 98 x 110 mm
Power	54.2 hp 40.4 kW
Rated RPM	2400
Starter type	electric

Transmission

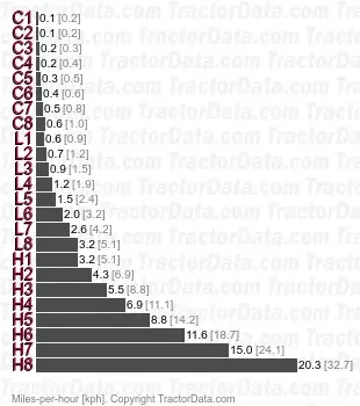

Transmission — 24 forward and reverse

Gears	24 forward and reverse
Clutch	electro-hydraulic wet disc
Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift.

Dimensions

Kubota MZ55 Tires
Standard tires (ag)	Front: 8.3-20. Rear: 12.4-32

Dimensions
Wheelbase	80.7 inches 204 cm
Length	142.7 inches 362 cm
Width	61.6 inches 156 cm
Height (cab)	96.3 inches 244 cm
Weight	5313 lbs 2409 kg
Ground clearance	16.1 inches 40 cm
Front tread	52 inches 132 cm
Rear tread	48 to 67.7 inches 121 to 171 cm
