Kubota MZ555

The Kubota MZ555 is a tractor produced by Kubota. It is equipped with a 220.9 ci 3.6 L engine. The rated power output is 54.2 hp 40.4 kW. Transmission: 24 forward and reverse. Operating weight: 5313 lbs 2409 kg.

Overview

	2010 - 2014 SynerZ SeriesUtility tractor
2010 - 2014
SynerZ Series
Utility tractor

Production
Manufacturer	Kubota
Utility tractor

Variants
MZ555	utility
MZ555-PC	half-track

Kubota MZ555 Engine
Kubota 3.6L 4-cyl diesel
Fuel tank	17.2 gal 65.1 L
Engine details ...

Kubota MZ555 Transmission
24-speed
Transmission details ...

Kubota MZ555 Power
Engine	54.2 hp 40.4 kW

Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Cab standard.

Tractor hitch
Rear Type	II/I
Control	position and draft control

Power Take-off (PTO)
Rear PTO Type	540 (1.375)*Three-speed PTO shift with available ground speed or reverse 540
Engine RPM	544@2400
	764@2400
	1080@2400

Dimensions & Tires
Wheelbase	80.7 inches 204 cm
Weight	5313 lbs 2409 kg
Front tire	8.3-20
Rear tire	12.4-32
Full dimensions and tires ...

Engine

Engine Detail — 220.9 ci / 3.6 L Diesel

Manufacturer	Kubota V3600IDI
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	220.9 ci 3.6 L
Bore/Stroke	3.86x4.72 inches 98 x 120 mm
Power	54.2 hp 40.4 kW
Rated RPM	2400
Starter type	electric

Transmission

Transmission — 24 forward and reverse

Gears	24 forward and reverse
Clutch	electro-hydraulic wet disc

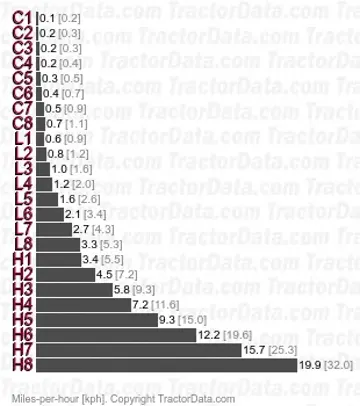

Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift.

Dimensions

Kubota MZ555 Tires
Standard tires (ag)	Front: 8.3-20. Rear: 12.4-32

Dimensions
Wheelbase	80.7 inches 204 cm
Length	142.7 inches 362 cm
Width	61.6 inches 156 cm
Height (cab)	96.3 inches 244 cm
Weight	5313 lbs 2409 kg
Ground clearance	16.1 inches 40 cm
Front tread	52 inches 132 cm
Rear tread	48 to 67.7 inches 121 to 171 cm

Photos

Kubota MZ555 tractor photo
