Landini 6500

The Landini 6500 is a tractor produced by Landini. It is equipped with a 235.8 ci 3.9 L engine. The rated power output is 65 hp 48.5 kW. Transmission: 12 forward and 4 reverse. Drive type: 4x2 2WD. Operating weight: 4,878 lbs (2WD) 2212 kg.

Overview

	1973 - 1983 Utility tractor
1973 - 1983
Utility tractor

Production
Manufacturer	Landini
Utility tractor

Landini 6500 Engine
Perkins 3.9L 4-cyl diesel
Fuel tank	16.4 gal 62.1 L
Engine details ...

Landini 6500 Transmission
12-speed
Transmission details ...

Landini 6500 Power
Engine	65 hp 48.5 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Differential lock	rear standard
Steering	mechanical
	hydrostatic power
Dry disc brakes
Four-post ROPS. Cab optional.

Hydraulics
Total flow	7.5 gpm 28.4 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	5,072 lbs 2300 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/ground
	1000 (optional)

Dimensions & Tires
2WD Wheelbase	87 inches 220 cm
Weight	4878 to 5490 pounds
Front tire	7.50-16
Rear tire	12.4-36
Full dimensions and tires ...

References
6500 Mark II published in 1980, by Landini

Engine

Engine Detail — 235.8 ci / 3.9 L Diesel

Manufacturer	Perkins A4.236
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	235.8 ci 3.9 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Power	65 hp 48.5 kW
Rated RPM	2200
Torque	166.0 lb-ft 225.1 Nm
Torque RPM	1500

Transmission

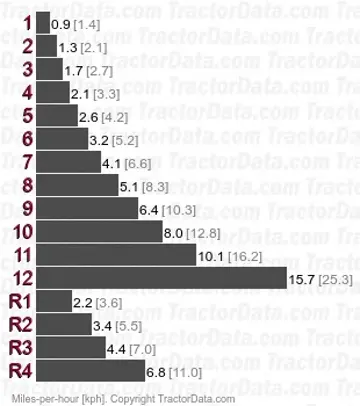

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse

Dimensions

Landini 6500 Tires
Ag front	7.50-16
Ag rear	12.4-36
Ag front	11.2-24
Ag rear	12.4-36

Dimensions
2WD Wheelbase	87 inches 220 cm
Length	142.5 inches 361 cm
Height (hood)	55.1 inches 139 cm
Height (ROPS)	90.9 inches 230 cm
Weight	4,878 lbs (2WD) 2212 kg
	5,490 lbs (4WD) 2490 kg
2WD Clearance (front axle)	18.5 inches 46 cm

Photos

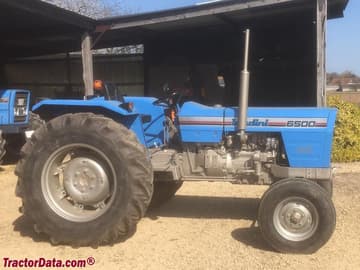

Landini 6500, right side.

Landini 6500, front-right view.
