Landini 6860
The Landini 6860 is a tractor produced by Landini. It is equipped with a 235.8 ci 3.9 L engine. The rated power output is 65 hp 48.5 kW. Transmission: 12 forward and reverse. Operating weight: 5530 to 6100 pounds.
Engine Power
65 hp
48.5 kW
Fuel & Capacities
22.7 gal
85.9 L
Transmission
12 forward and reverse
Operating Weight
5530 to 6100 pounds
Landini 6860 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1988 - 2000
60 SeriesUtility tractor |
|---|---|
1988 - 2000 | |
60 Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Landini |
Utility tractor | |
Variants | |
|---|---|
6860 | ROPS |
6870 | Cabin |
Landini 6860 Engine | |
|---|---|
Perkins 3.9L 4-cyl diesel | |
Fuel tank | 22.7 gal
85.9 L |
Engine details ...  | |
Landini 6860 Transmission | |
|---|---|
12-speed mechanical shuttle | |
Transmission details ...  |
Landini 6860 Power | |
|---|---|
Engine | 65 hp
48.5 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Four-post ROPS. | |
Hydraulics | |
|---|---|
Pump flow | 9.4 gpm
35.6 lpm |
Tractor hitch | |
|---|---|
Rear lift | 5732 lbs
2600 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/750 |
Dimensions & Tires | |
|---|---|
Wheelbase | 89 inches
226 cm |
Weight | 5530 to 6100 pounds |
Front tire | 7.50-18 |
2WD Rear tire | 16.9R30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 235.8 ci / 3.9 L Diesel
Manufacturer | Perkins A4.236 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 235.8 ci
3.9 L |
Bore/Stroke | 3.875x5.00 inches
98 x 127 mm |
Power | 65 hp
48.5 kW |
Rated RPM | 2200 |
Torque | 185.1 lb-ft
251.0 Nm |
Torque RPM | 1400 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 12 forward and reverse mechanical shuttle
Type | mechanical shuttle |
Gears | 12 forward and reverse |
Dimensions
Landini 6860 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-18. Rear: 16.9R30 |
4WD Standard tires (ag) | Front: 12.4R24. Rear: 16.9R30 |
Dimensions | |
|---|---|
Wheelbase | 89 inches
226 cm |
Length | 135 inches
342 cm |
2WD Weight | 5530 lbs
2508 kg |
4WD Weight | 6100 lbs
2766 kg |
Photos

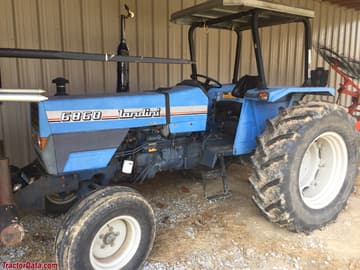

Landini 6860
