Lawn Chief 30502
The Lawn Chief 30502 is a tractor produced by Lawn Chief Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (gross): 8 hp / 6.0 kW. Transmission: Peerless 708B. Operating weight: 329 lbs 149 kg.
Engine Power
Gasoline (gross): 8 hp / 6.0 kW
Fuel & Capacities
Gasoline
Transmission
Peerless 708B
Operating Weight
329 lbs
149 kg
Overview
 | 1982 - 1985
Riding lawn mowerMurray built
Riding lawn mower
Murray built |
|---|
Note: the Lawn Chief model 30502 is the same as the Murray 30502. The following data is from the 30502 listing. |
|---|
Production | |
|---|---|
Distributor | Lawn Chief |
Manufacturer | Murray |
Riding lawn mower | |
Lawn Chief 30502 Engine | |
|---|---|
8HP Briggs & Stratton 318cc 1-cyl gasoline | |
Engine details ...  |
Lawn Chief 30502 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Weight | 329 lbs
149 kg |
Front tire | 10.00x3.50 |
Rear tire | 16.00x6.50 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Tractors and Rear Engine Riders published in 1982, by Lawn Chief | |
Tractors and Rear Engine Riders published in 1985, by Lawn Chief |
Engine
Note: the Lawn Chief model 30502 is the same as the Murray 30502. The following data is from the 30502 listing. |
|---|
Engine Detail — 318 cc / 19.44 ci Gasoline
Manufacturer | Briggs & Stratton 190707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 318 cc
19.44 ci |
Bore/Stroke | 3.00x2.75 inches
76 x 70 mm |
Power (gross) | 8 hp
6.0 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Note: the Lawn Chief model 30502 is the same as the Murray 30502. The following data is from the 30502 listing. |
|---|
Transmission — Peerless 708B
Transmission | Peerless 708B |
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
Dimensions
Note: the Lawn Chief model 30502 is the same as the Murray 30502. The following data is from the 30502 listing. |
|---|
Lawn Chief 30502 Tires | |
|---|---|
Lawn/turf front | 10.00x3.50 |
Lawn/turf rear | 16.00x6.50 |
Dimensions | |
|---|---|
Shipping weight | 329 lbs
149 kg |
Attachments
Note: the Lawn Chief model 30502 is the same as the Murray 30502. The following data is from the 30502 listing. |
|---|
30" Mower deck | |
|---|---|
Type | mid-mount Murray |
1-blade with manual lift | |
Cutting width | 30 inches
76 cm |
Photos

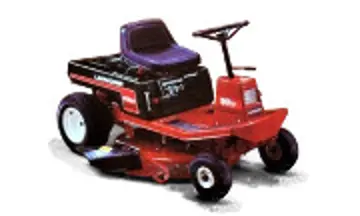

Lawn Chief 30502 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Lawn Chief Lawn Tractors Lawn Chief 30502.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Lawn Chief Lawn Tractors Lawn Chief 30502 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Lawn Chief Lawn Tractors Lawn Chief 30502.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
