Lawn Chief 832
The Lawn Chief 832 is a tractor produced by Lawn Chief Lawn Tractors. The listed engine power is Gasoline (gross): 8 hp / 6.0 kW. Transmission: Tecumseh 642.
Engine Power
Gasoline (gross): 8 hp / 6.0 kW
Fuel & Capacities
Gasoline
Transmission
Tecumseh 642
Overview
 | 1973 - 1977
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Lawn Chief |
Lawn tractor | |
Built in Cary, Illinois, USA | |
Original price was $770 in 1975 | |
Lawn Chief 832 Engine | |
|---|---|
8HP Briggs & Stratton 1-cyl gasoline | |
Engine details ...  |
Lawn Chief 832 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Tru-Test Lawn Chief Master Parts Manual published in 1975 | |
Tru-Test Lawn Chief Master Parts Manual published in 1976 | |
Master Parts Manual published in 1977 |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Power (gross) | 8 hp
6.0 kW |
Starter | manual recoil |
electric OptOptional | |
Starter volts | 12 |
Transmission
Transmission — Tecumseh 642
Transmission | Tecumseh 642 |
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
Dimensions
Lawn Chief 832 Tires |
|---|
Dimensions |
|---|
Attachments
32" Mower deck | |
|---|---|
Type | mid-mount Lawn Chief |
2-blade with manual lift | |
Cutting width | 32 inches
81 cm |
Photos

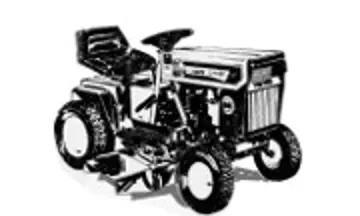

Lawn Chief 832 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Lawn Chief Lawn Tractors Lawn Chief 832.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Lawn Chief Lawn Tractors Lawn Chief 832 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Lawn Chief Lawn Tractors Lawn Chief 832.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
