Lawn Rovr 1076
The Lawn Rovr 1076 is a tractor produced by Lawn Rovr Lawn Tractors. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: Peerless 630A. Operating weight: 550 lbs 249 kg.
Engine Power
Gasoline (gross): 10 hp / 7.5 kW
Fuel & Capacities
Gasoline
Transmission
Peerless 630A
Operating Weight
550 lbs
249 kg
Overview
 | 1977 - 1978
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Lawn Rovr |
Lawn tractor | |
Built in Mishawaka, Indiana, USA | |
Lawn Rovr 1076 Engine | |
|---|---|
10HP Tecumseh 1-cyl gasoline | |
Engine details ...  |
Lawn Rovr 1076 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 42 inches
106 cm |
Weight | 550 lbs
249 kg |
Front tire | 15x6.00-6 |
Rear tire | 18x9.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
The Lawn Rov'r Lawn Machine published in 1977 |
Engine
Engine Detail — Gasoline
Manufacturer | Tecumseh |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Power (gross) | 10 hp
7.5 kW |
Starter volts | 12 |
Transmission
Transmission — Peerless 630A
Transmission | Peerless 630A |
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
Dimensions
Lawn Rovr 1076 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 18x9.50-8 |
Dimensions | |
|---|---|
Wheelbase | 42 inches
106 cm |
Length | 60 inches
152 cm |
Shipping weight | 550 lbs
249 kg |
Attachments
Attachment overview | |
|---|---|
36" mid-mount mower deck | |
Snowblower | |
Blade |
36" Mower deck | |
|---|---|
Type | mid-mount Lawn Rovr |
3-blade with manual lift | |
Cutting width | 36 inches
91 cm |
Photos

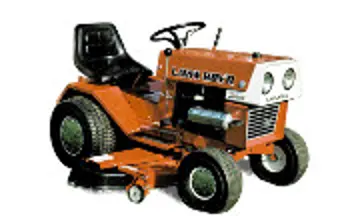

Lawn Rovr 1076 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Lawn Rovr Lawn Tractors Lawn Rovr 1076.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Lawn Rovr Lawn Tractors Lawn Rovr 1076 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Lawn Rovr Lawn Tractors Lawn Rovr 1076.
Converted Equivalents:
Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
