Lennox Kittytrack 600
The Lennox Kittytrack 600 is a tractor produced by Lennox Lawn Tractors. It is equipped with a 231 cc 14.1 ci engine. The listed engine power is Gasoline (listed): 6 hp / 4.5 kW. Transmission: 1 forward and reverse. Drive type: crawler.
Engine Power
Gasoline (listed): 6 hp / 4.5 kW
Drive & Traction
crawler
Fuel & Capacities
Gasoline
Transmission
1 forward and reverse
Overview
 | 1964 - 1965
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Lennox |
Garden tractor | |
Built in Des Moines, Iowa, USA | |
Lennox Kittytrack 600 Engine | |
|---|---|
6HP Briggs & Stratton 231cc 1-cyl gasoline | |
Engine details ...  |
Lennox Kittytrack 600 Transmission | |
|---|---|
1-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Drive | crawler |
Open operator station. | |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Dimensions & Tracks | |
|---|---|
Tracks | |
Full dimensions and tracks ...  |

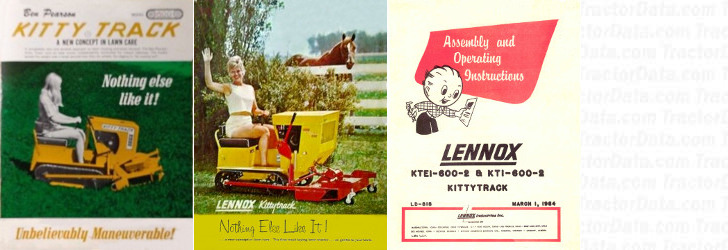

References | |
|---|---|
 | |
Kitty-Track published by Ben Pearson | |
Kittytrack published in 1965, by Lennox | |
Assembly and Operating Instructions Kittytrack KTEI-6002 & KTI-600-2 (LD-818) published in 1964 |
Engine
Engine Detail — 231 cc / 14.1 ci Gasoline
Manufacturer | Briggs & Stratton 140000 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 231 cc
14.1 ci |
Bore/Stroke | 2.75x2.375 inches
70 x 60 mm |
Power | 6 hp
4.5 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 1 forward and reverse
Gears | 1 forward and reverse |
Dimensions
Lennox Kittytrack 600 Tracks |
|---|
Dimensions | |
|---|---|
Length | 52 inches
132 cm |
Width | 29 inches
73 cm |
Attachments
Attachment overview | |
|---|---|
25" front-mount mower deck | |
32" front-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos
Lennox Kittytrack 600 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Lennox Lawn Tractors Lennox Kittytrack 600.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Lennox Lawn Tractors Lennox Kittytrack 600 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Lennox Lawn Tractors Lennox Kittytrack 600.
Converted Equivalents:
Horsepower (HP)6 hp
Kilowatts (kW)4.5 kW
Metric Horsepower (PS / CV)6.1 PS
