Levitt 18732 Fleetwood
The Levitt 18732 Fleetwood is a tractor produced by Levitt Lawn Tractors. It is equipped with a 245 cc 15 ci engine. The listed engine power is Gasoline (gross): 7 hp / 5.2 kW. Transmission: 6 forward and 2 reverse. Operating weight: 433 lbs 196 kg.
Engine Power
Gasoline (gross): 7 hp / 5.2 kW
Fuel & Capacities
1 gal
3.8 L
Transmission
6 forward and 2 reverse
Operating Weight
433 lbs
196 kg
Overview
 | 1968
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Levitt |
Lawn tractor | |
Built in Michigan City, Indiana, USA | |
Levitt 18732 Engine | |
|---|---|
7HP Tecumseh 245cc 1-cyl gasoline | |
Fuel tank | 1 gal
3.8 L |
Engine details ...  | |
Levitt 18732 Transmission | |
|---|---|
6-speed friction disc | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Weight | 433 lbs
196 kg |
Front tire | 14x5 |
Rear tire | 16x6.50 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Fleetwood Lawn Tractors published in 1968, by Levitt Manufacturing | |
Dealer Service Guide published in 1974 |
Engine
Engine Detail — 245 cc / 15 ci Gasoline
Manufacturer | Tecumseh V70 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical |
Displacement | 245 cc
15 ci |
Bore/Stroke | 2.75x2.531 inches
70 x 64 mm |
Power (gross) | 7 hp
5.2 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 6 forward and 2 reverse friction disc
Type | friction disc |
Gears | 6 forward and 2 reverse |
Dimensions
Levitt 18732 Tires | |
|---|---|
Lawn/turf front | 14x5 |
Lawn/turf rear | 16x6.50 |
Dimensions | |
|---|---|
Length | 58 inches
147 cm |
Width | 32.5 inches
82 cm |
Height (hood) | 30 inches
76 cm |
Shipping weight | 433 lbs
196 kg |
Attachments
Attachment overview | |
|---|---|
32" mid-mount mower deck | |
Snowblower | |
Blade |
32" Mower deck | |
|---|---|
Type | mid-mount Levitt |
2-blade with manual lift | |
Cutting width | 32 inches
81 cm |
Photos

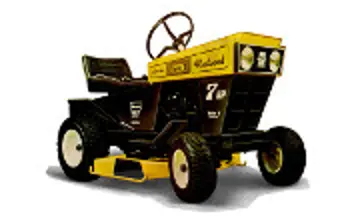

Levitt 18732 Fleetwood tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Levitt Lawn Tractors Levitt 18732 Fleetwood.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Levitt Lawn Tractors Levitt 18732 Fleetwood Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Levitt Lawn Tractors Levitt 18732 Fleetwood.
Converted Equivalents:
Horsepower (HP)7 hp
Kilowatts (kW)5.2 kW
Metric Horsepower (PS / CV)7.1 PS
