Long 2260
The Long 2260 is a tractor produced by Long. It is equipped with a 95.15 ci 1.6 L engine. Transmission: 6 forward and 2 reverse.
Fuel & Capacities
14.3 gal
54.1 L
Transmission
6 forward and 2 reverse
Overview
 | 1993 - 1995
Compact Utility tractorUTB/Universal built
Compact Utility tractor
UTB/Universal built |
|---|
Production | |
|---|---|
Distributor | Long |
Manufacturer | UTB/Universal |
Compact Utility tractor | |
Built in Brasov, Romania | |
Long 2260 Engine | |
|---|---|
UTB/Universal 1.6L 2-cyl diesel | |
Fuel tank | 14.3 gal
54.1 L |
Engine details ...  | |
Long 2260 Transmission | |
|---|---|
6-speed partially synchronized | |
Transmission details ...  |
Long 2260 Power | |
|---|---|
PTO (claimed) | 24 hp
17.9 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Mechanical band brakes | |
Two-post folding ROPS. | |
Hydraulics | |
|---|---|
Type | open center |
Total flow | 6 gpm
22.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | I/0 |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540 |
Engine RPM | 540@1970 |
Dimensions & Tires | |
|---|---|
Front tire | 5.00-15 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
2260 Tractor published by Long | |
Loaders published in 1993, by Long |
Engine
Engine Detail — 95.15 ci / 1.6 L Diesel
Manufacturer | UTB/Universal |
Fuel Type | Diesel |
Configuration | 2-cylinder, liquid-cooled |
Displacement | 95.15 ci
1.6 L |
Air cleaner | oil bath |
Pre-heating | thermostart |
Starter volts | 12 |
Coolant capacity | 8.5 qts
8.0 L |
Transmission
Transmission — 6 forward and 2 reverse partially synchronized
Type | partially synchronized |
Gears | 6 forward and 2 reverse |
Clutch | 254mm dry disc |
Gear pairs 2/3 and 5/6 are synchronized. | |
Dimensions
Long 2260 Tires | |
|---|---|
Ag front | 5.00-15 |
Ag rear | 11.2-24 |
Dimensions | |
|---|---|
Front tread | 39.4 to 55.1 inches
100 to 139 cm |
Rear tread | 37 to 55 inches
93 to 139 cm |
Attachments
Attachment overview | |
|---|---|
Long 1548A loader | |
Long 1550C loader | |
Long 2099 loader |
Photos

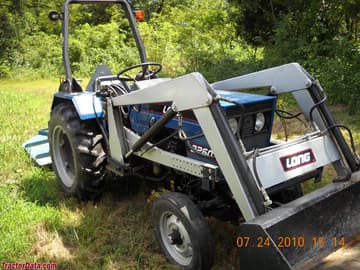

Long 2260
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Long 2260.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
