Long 2310
The Long 2310 is a tractor produced by Long. It is equipped with a 109.7 ci 1.8 L engine. Transmission: 6 forward and 2 reverse. Operating weight: 3,700 lbs 1678 kg.
Fuel & Capacities
14.25 gal
53.9 L
Transmission
6 forward and 2 reverse
Operating Weight
3,700 lbs
1678 kg
Long 2310 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1995 - 1997
Compact Utility tractorUTB/Universal built |
|---|---|
1995 - 1997 | |
Compact Utility tractor | |
UTB/Universal built | |
1995 - 1997 | |
|---|---|
Compact Utility tractor | |
UTB/Universal built |
Production | |
|---|---|
Distributor | Long |
Manufacturer | UTB/Universal |
Compact Utility tractor | |
Built in Brasov, Romania | |
Long 2310 Engine | |
|---|---|
UTB/Universal 1.8L 2-cyl diesel | |
Fuel tank | 14.25 gal
53.9 L |
Engine details ...  | |
Long 2310 Transmission | |
|---|---|
6-speed partially synchronized | |
Transmission details ...  |
Long 2310 Power | |
|---|---|
PTO (claimed) | 28 hp
20.9 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | hand-operated |
Steering | hydrostatic power |
Differential mechanical band brakes | |
Foldable two-post ROPS. | |
Hydraulics | |
|---|---|
Type | live |
Total flow | 6 gpm
22.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | 1/0 |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live (two-stage clutch) |
Rear PTO Type | 540 |
Engine RPM | 540@1970 |
Dimensions & Tires | |
|---|---|
Weight | 3,700 lbs
1678 kg |
Front tire | 5.00-15 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Engine
| 1995 - 1997
Compact Utility tractorUTB/Universal built |
|---|---|
1995 - 1997 | |
Compact Utility tractor | |
UTB/Universal built | |
1995 - 1997 | |
|---|---|
Compact Utility tractor | |
UTB/Universal built |
Engine Detail — 109.7 ci / 1.8 L Diesel
Manufacturer | UTB/Universal |
Fuel Type | Diesel |
Configuration | 2-cylinder, liquid-cooled |
Displacement | 109.7 ci
1.8 L |
Air cleaner | oil bath with pre-cleaner |
Rated RPM | 2400 |
Coolant capacity | 8.5 qts
8.0 L |
Transmission
| 1995 - 1997
Compact Utility tractorUTB/Universal built |
|---|---|
1995 - 1997 | |
Compact Utility tractor | |
UTB/Universal built | |
1995 - 1997 | |
|---|---|
Compact Utility tractor | |
UTB/Universal built |
Transmission — 6 forward and 2 reverse partially synchronized
Type | partially synchronized |
Gears | 6 forward and 2 reverse |
Clutch | 10-inch dry |
Gears 2-3 and 5-6 are synchronized. | |
Dimensions
| 1995 - 1997
Compact Utility tractorUTB/Universal built |
|---|---|
1995 - 1997 | |
Compact Utility tractor | |
UTB/Universal built | |
1995 - 1997 | |
|---|---|
Compact Utility tractor | |
UTB/Universal built |
Long 2310 Tires | |
|---|---|
Ag front | 5.00-15 |
Ag rear | 11.2-24 |
Dimensions | |
|---|---|
Weight | 3,700 lbs
1678 kg |
Front tread | 39.4 to 46.5 inches
100 to 118 cm |
Rear tread | 37 to 55 inches
93 to 139 cm |
Attachments
| 1995 - 1997
Compact Utility tractorUTB/Universal built |
|---|---|
1995 - 1997 | |
Compact Utility tractor | |
UTB/Universal built | |
1995 - 1997 | |
|---|---|
Compact Utility tractor | |
UTB/Universal built |
Photos

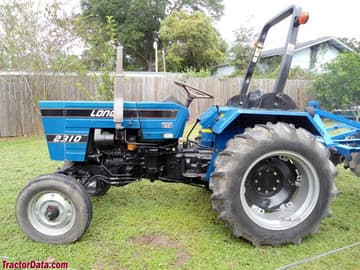

Long 2310
