Long 2460
The Long 2460 is a tractor produced by Long. It is equipped with a 142.8 ci 2.3 L engine. Transmission: 8 forward and 2 reverse. Operating weight: 4220 lbs 1914 kg.
Fuel & Capacities
16.4 gal
62.1 L
Transmission
8 forward and 2 reverse
Operating Weight
4220 lbs
1914 kg
Long 2460 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1990 - 1997
Utility tractorUTB/Universal built |
|---|---|
1990 - 1997 | |
Utility tractor | |
UTB/Universal built | |
1990 - 1997 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Production | |
|---|---|
Distributor | Long |
Manufacturer | UTB/Universal |
Utility tractor | |
Built in Brasov, Romania | |
Variants | |
|---|---|
2460DTC | 4WD |
Long 2460 Engine | |
|---|---|
Uzina 2.3L 3-cyl diesel | |
Engine details ...  |
Long 2460 Transmission | |
|---|---|
8-speed partially synchronized | |
Transmission details ...  |
Long 2460 Power | |
|---|---|
Drawbar (claimed) | 37.5 hp
28.0 kW |
PTO (claimed) | 41.9 hp
31.2 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Mechanical band brakes | |
Two-post fixed ROPS. |
Capacity | |
|---|---|
Fuel | 16.4 gal
62.1 L |
Hydraulic system | 5.25 gal
19.9 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 5.25 gal
19.9 L |
Pressure | 2000 psi
137.9 bar |
Valves | 1 |
Total flow | 9 gpm
34.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Rear lift | 2645 lbs
1199 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@1970 |
Dimensions & Tires | |
|---|---|
Wheelbase | 77 inches
195 cm |
Weight | 4220 lbs
1914 kg |
Front tire | 8.00-16 |
2WD Rear tire | 14.9-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
50 Years of Peoples and Products published in 1992, by Long | |
Loaders published in 1993, by Long |
Engine
| 1990 - 1997
Utility tractorUTB/Universal built |
|---|---|
1990 - 1997 | |
Utility tractor | |
UTB/Universal built | |
1990 - 1997 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Engine Detail — 142.8 ci / 2.3 L Diesel
Manufacturer | Uzina D-115 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 142.8 ci
2.3 L |
Bore/Stroke | 3.74x4.33 inches
95 x 110 mm |
Pre-heating | thermostart |
Rated RPM | 2400 |
Starter volts | 12 |
Oil capacity | 7.3 qts
6.9 L |
Coolant capacity | 13.5 qts
12.8 L |
Transmission
| 1990 - 1997
Utility tractorUTB/Universal built |
|---|---|
1990 - 1997 | |
Utility tractor | |
UTB/Universal built | |
1990 - 1997 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Transmission — 8 forward and 2 reverse partially synchronized
Type | partially synchronized |
Gears | 8 forward and 2 reverse |
Clutch | 279.4mm dry discs |
Oil capacity | 21 qts
19.9 L |
Gears 3-4 and 7-8 are synchronized. | |
With 14.9x28 rear tires. | |
 | |
Dimensions
| 1990 - 1997
Utility tractorUTB/Universal built |
|---|---|
1990 - 1997 | |
Utility tractor | |
UTB/Universal built | |
1990 - 1997 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Long 2460 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 8.00-16. Rear: 14.9-28 |
4WD Standard tires (ag) | Front: 8.3-24. Rear: 14.9-28 |
Dimensions | |
|---|---|
Wheelbase | 77 inches
195 cm |
Weight | 4220 lbs
1914 kg |
2WD Front tread | 57 to 84 inches
144 to 213 cm |
4WD Front tread | 59 inches
149 cm |
Rear tread | 55 to 75 inches
139 to 190 cm |
Attachments
| 1990 - 1997
Utility tractorUTB/Universal built |
|---|---|
1990 - 1997 | |
Utility tractor | |
UTB/Universal built | |
1990 - 1997 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Attachment overview | |
|---|---|
Long 1548A loader | |
Long 1550C loader |
Photos

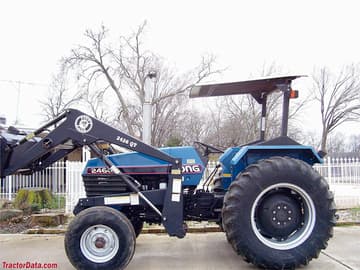

Long 2460 with Bush Hog 2426QT loader.
