Long 260
The Long 260 is a tractor produced by Long. It is equipped with a 95 ci 1.6 L engine. Transmission: 6 forward and 2 reverse. Operating weight: 3270 lbs 1483 kg.
Fuel & Capacities
14.3 gal
54.1 L
Transmission
6 forward and 2 reverse
Operating Weight
3270 lbs
1483 kg
Long 260 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1980 - 1990
Utility tractorUTB/Universal built |
|---|---|
1980 - 1990 | |
Utility tractor | |
UTB/Universal built | |
1980 - 1990 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Production | |
|---|---|
Distributor | Long |
Manufacturer | UTB/Universal |
Utility tractor | |
Variants | |
|---|---|
Universal 260 | similar model |
Long 260 Engine | |
|---|---|
UTB/Universal 1.6L 2-cyl diesel | |
Engine details ...  |
Long 260 Transmission | |
|---|---|
6-speed sliding gear/constant mesh | |
Transmission details ...  |
Long 260 Power | |
|---|---|
PTO (claimed) | 24 hp
17.9 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
hydrostatic power OptOptional | |
Mechanical band brakes | |
Open operator station. Two-post ROPS optional. FOPS canopy optional. | |
Capacity | |
|---|---|
Fuel | 14.3 gal
54.1 L |
Hydraulic system | 4.25 gal
16.1 L |
10 galOptOptional
37.9 L | |
Rear diff. | 1.5 qts
1.4 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 4.25 gal
16.1 L |
10 galOptOptional
37.9 L | |
Valves | 0 to 2 |
Total flow | 5.75 gpm
21.8 lpm |
Tractor hitch | |
|---|---|
Rear lift | II/I lbs
0 kg |
Rear lift (at ends) | 2645 lbs
1199 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/ground |
Engine RPM | 540@1970 |
Dimensions & Tires | |
|---|---|
Wheelbase | 70.8 inches
179 cm |
Weight | 3270 lbs
1483 kg |
Front tire | 5.00-1511.2-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 30 |
Batteries | 1 |
2 | |
Battery volts | 12 |
6 | |
Battery Group | BCI 30H (12v) |
BCI 3EH (6v) | |
References | |
|---|---|
 | |
Loaders published in 1993, by Long |
Engine
| 1980 - 1990
Utility tractorUTB/Universal built |
|---|---|
1980 - 1990 | |
Utility tractor | |
UTB/Universal built | |
1980 - 1990 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Engine Detail — 95 ci / 1.6 L Diesel
Manufacturer | UTB/Universal |
Fuel Type | Diesel |
Configuration | 2-cylinder, liquid-cooled inline |
Displacement | 95 ci
1.6 L |
Bore/Stroke | 3.74x4.33 inches
95 x 110 mm |
Air cleaner | oil bath |
Pre-heating | coolant heater (optional) |
Compression | 17:1 |
Rated RPM | 2400 |
Idle RPM | 600-2550 |
Firing order | 1-2 |
Starter volts | 12 |
Coolant capacity | 8.5 qts
8.0 L |
Oil capacity | 4.5 qts
4.3 L |
Transmission
| 1980 - 1990
Utility tractorUTB/Universal built |
|---|---|
1980 - 1990 | |
Utility tractor | |
UTB/Universal built | |
1980 - 1990 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Transmission — 6 forward and 2 reverse sliding gear/constant mesh
Type | sliding gear/constant mesh |
Gears | 6 forward and 2 reverse |
Oil capacity | 17 qts
16.1 L |
Oil type | LONG Multi-Purpose Tractor Fluid |
Gears 2-3 and 5-6 are synchronized. | |
With 11.2-28 rear tires. | |
 | |
Dimensions
| 1980 - 1990
Utility tractorUTB/Universal built |
|---|---|
1980 - 1990 | |
Utility tractor | |
UTB/Universal built | |
1980 - 1990 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Long 260 Tires | |
|---|---|
Ag front | 5.00-1511.2-28 |
Dimensions | |
|---|---|
Wheelbase | 70.8 inches
179 cm |
Length | 108.8 inches
276 cm |
Width | 65.9 inches
167 cm |
Shipping weight | 3270 lbs
1483 kg |
Clearance (front axle) | 17 inches
43 cm |
Clearance (rear axle) | 19 inches
48 cm |
Front tread | 50.3 to 77.5 inches
127 to 196 cm |
Rear tread | 46.6 to 74.1 inches
118 to 188 cm |
Long 260 Height | |
|---|---|
Steering wheel | 58.3 inches
148 cm |
Hood | 52.6 inches
133 cm |
Exhaust | 75.3 inches
191 cm |
Attachments
| 1980 - 1990
Utility tractorUTB/Universal built |
|---|---|
1980 - 1990 | |
Utility tractor | |
UTB/Universal built | |
1980 - 1990 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Photos

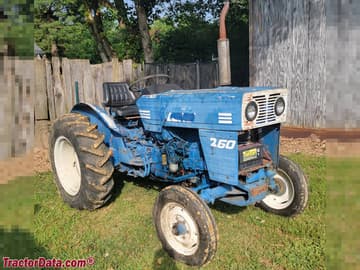

Long 260
Long 260
Long 260
Long 260
Long 260
