Mahindra 2660

The Mahindra 2660 is a tractor produced by Mahindra. It is equipped with a 161.5 ci 2.6 L engine. The rated power output is 60 hp 44.7 kW. Transmission: 12 forward and reverse. Operating weight: 1100 lbs 498 kg.

Overview

	2021 - 2600 SeriesCompact Utility tractorTYM built
2021 -
2600 Series
Compact Utility tractor
TYM built

2021 -
2600 Series
Compact Utility tractor
TYM built

Production
Distributor	Mahindra
Manufacturer	TYM
Compact Utility tractor
Original price	$32,011 (2021 gear ROPS )
	$32,710 (2021 hydro ROPS )
	$41,517 (2021 gear Cab )
	$42,216 (2021 hydro Cab )

Mahindra 2660 Engine
Mahindra 2.6L 3-cyl diesel
Fuel tank	16 gal 60.6 L
Engine details ...

Mahindra 2660 Power
Engine	60 hp 44.7 kW
Hydro PTO (claimed)	46.3 hp 34.5 kW
Gear PTO (claimed)	48.5 hp 36.2 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
Rear valves	1
Gear Pump flow	9.5 gpm 36.0 lpm
Hydro Pump flow	9.7 gpm 36.7 lpm
Steering flow	5 gpm 18.9 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift	3314 lbs 1503 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2300
Mid PTO	optional
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	73.7 inches 187 cm
Weight	4145 to 4585 pounds
Front tire	9.5x16
Rear tire	14.9x24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
Battery volts	12

References
2600 Series published in 2021, by Mahindra

Engine

	2021 - 2600 SeriesCompact Utility tractorTYM built
2021 -
2600 Series
Compact Utility tractor
TYM built

2021 -
2600 Series
Compact Utility tractor
TYM built

Engine Detail — 161.5 ci / 2.6 L Diesel

Manufacturer	Mahindra
Configuration	turbocharged diesel, 3-cylinder, liquid-cooled
Displacement	161.5 ci 2.6 L
Bore/Stroke	3.78x4.80 inches 96 x 122 mm
Emissions	Tier IV
Power	60 hp 44.7 kW
Fuel system	direct injection
Starter	electric
Starter volts	12

Mahindra 2660 Engine
Image courtesy of Troy

Transmission

	2021 - 2600 SeriesCompact Utility tractorTYM built
2021 -
2600 Series
Compact Utility tractor
TYM built

2021 -
2600 Series
Compact Utility tractor
TYM built

Transmission options
hydrostatic
12-speed power shuttle

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Transmission — 12 forward and reverse power shuttle

Type	power shuttle
Gears	12 forward and reverse
Clutch	dry disc

Dimensions

	2021 - 2600 SeriesCompact Utility tractorTYM built
2021 -
2600 Series
Compact Utility tractor
TYM built

2021 -
2600 Series
Compact Utility tractor
TYM built

Mahindra 2660 Tires
Standard tires (ag)	Front: 9.5x16. Rear: 14.9x24
Lawn/turf front	LSW305-521
Lawn/turf rear	LSW570-648
Industrial front	12-16.5
Industrial rear	16.9-24

Dimensions
Wheelbase	73.7 inches 187 cm
Length	138.8 inches 352 cm
Width	71.1 inches 180 cm
Height	102 inches 259 cm
ROPS Weight	4145 lbs 1880 kg
Cab Weight	4585 lbs 2079 kg
Ground clearance	14.5 inches 36 cm

Attachments

	2021 - 2600 SeriesCompact Utility tractorTYM built
2021 -
2600 Series
Compact Utility tractor
TYM built

2021 -
2600 Series
Compact Utility tractor
TYM built

Attachment overview
Front-end loader
Backhoe

Mahindra 65B Backhoe
Backhoe type	Mahindra 65B Backhoe
Weight	1100 lbs 498 kg
Transport height	98 inches 248 cm
Digging depth	108 inches 274 cm
2-Foot flat digging depth	104 inches 264 cm
Reach from pivot	150 inches 381 cm
Loading height	90 inches 228 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	3800 lbs 1723 kg
Dipperstick force	2400 lbs 1088 kg

Photos

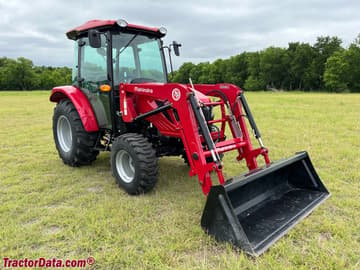

Mahindra 2660

Mahindra 2660

Mahindra 2660 cab interior.
