Mahindra 2815

The Mahindra 2815 is a tractor produced by Mahindra. It is equipped with a 91.3 ci 1.5 L engine. The rated power output is 28 hp 20.9 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 2,555 lbs 1158 kg.

Engine Power
28 hp 20.9 kW
Fuel & Capacities
Diesel
Transmission
infinite forward and reverse (3-range)
Operating Weight
2,555 lbs 1158 kg

Mahindra 2815 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

Mahindra 2815 tractor photo
2006 - 2008 15 SeriesCompact Utility tractorMitsubishi built
2006 - 2008
15 Series
Compact Utility tractor
Mitsubishi built
2006 - 2008
15 Series
Compact Utility tractor
Mitsubishi built
Production
Distributor
Mahindra
Manufacturer
Mitsubishi
Compact Utility tractor
Original price
$10,660 (2009)
Mahindra 2815 Engine
Mitsubishi 1.5L 3-cyl diesel
Engine details ...
Mahindra 2815 Transmission
hydrostatic
Transmission details ...
Mahindra 2815 Power
Engine
28 hp 20.9 kW
PTO (claimed)
22 hp 16.4 kW
Mechanical
Four-wheel drive
Steering
hydrostatic power
Wet disc brakes
Two-post foldable ROPS.
Hydraulics
Type
open center
Valves
0 or 1
Total flow
7.4 gpm 28.0 lpm
Steering flow
3.4 gpm 12.9 lpm
Tractor hitch
Rear Type
I
Control
position control
Rear lift (at ends)
2,646 lbs 1200 kg
Power Take-off (PTO)
Rear PTO
live
Rear PTO Type
540
Engine RPM
540@2376
Mid PTO Type
2000
Engine RPM
2000@2525
Dimensions & Tires
Weight
2,555 lbs 1158 kg
Front tire
7x16
Rear tire
11.2x24
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
46
Battery volts
12
Battery AH
55

Engine

Mahindra 2815 tractor photo
2006 - 2008 15 SeriesCompact Utility tractorMitsubishi built
2006 - 2008
15 Series
Compact Utility tractor
Mitsubishi built
2006 - 2008
15 Series
Compact Utility tractor
Mitsubishi built

Engine Detail — 91.3 ci / 1.5 L Diesel

Manufacturer
Mitsubishi S3L3
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
91.3 ci 1.5 L
Power
28 hp 20.9 kW
Compression
22.5:1
Rated RPM
2500
Starter
electric
Starter volts
12

Transmission

Mahindra 2815 tractor photo
2006 - 2008 15 SeriesCompact Utility tractorMitsubishi built
2006 - 2008
15 Series
Compact Utility tractor
Mitsubishi built
2006 - 2008
15 Series
Compact Utility tractor
Mitsubishi built

Transmission — infinite forward and reverse (3-range) hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse (3-range)

Dimensions

Mahindra 2815 tractor photo
2006 - 2008 15 SeriesCompact Utility tractorMitsubishi built
2006 - 2008
15 Series
Compact Utility tractor
Mitsubishi built
2006 - 2008
15 Series
Compact Utility tractor
Mitsubishi built
Mahindra 2815 Tires
Ag front
7x16
Ag rear
11.2x24
Lawn/turf front
25x8.5-14
Lawn/turf rear
13.6x16
Industrial front
27x8.5-15
Industrial rear
15x19.5
Dimensions
Length
121.3 inches 308 cm
Width
59.8 inches 151 cm
Operating weight
2,555 lbs 1158 kg

Attachments

Mahindra 2815 tractor photo
2006 - 2008 15 SeriesCompact Utility tractorMitsubishi built
2006 - 2008
15 Series
Compact Utility tractor
Mitsubishi built
2006 - 2008
15 Series
Compact Utility tractor
Mitsubishi built
Attachment overview
72" mid-mount mower deck
Front-end loader
72" Mower deck
Type
mid-mount Mahindra
Cutting width
72 inches 182 cm

Photos

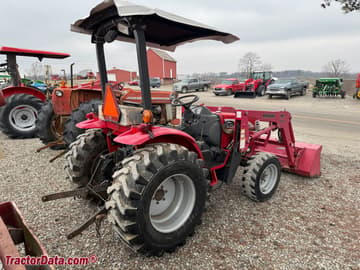

Mahindra 2815 HST compact utility tractor with ML111 front-end loader.

Mahindra 2815 HST compact utility tractor with ML111 front-end loader.

Mahindra 2815 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Mahindra 2815.

Converted Equivalents:

Horsepower (HP)28 hp
Kilowatts (kW)20.9 kW
Metric Horsepower (PS / CV)28.4 PS
