Mahindra 2816
The Mahindra 2816 is a tractor produced by Mahindra. It is equipped with a 80.4 ci 1.3 L engine. The listed engine power is Diesel (listed): 28 hp / 20.9 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 2315 to 2458 pounds.
Engine Power
Diesel (listed): 28 hp / 20.9 kW
Fuel & Capacities
Diesel
Transmission
infinite forward and reverse (3-range)
Operating Weight
2315 lbs
1050 kg
Overview
 | 2008 - 2010
16 SeriesCompact Utility tractorMitsubishi built
16 Series
Compact Utility tractor
Mitsubishi built |
|---|
Production | |
|---|---|
Distributor | Mahindra |
Manufacturer | Mitsubishi |
Compact Utility tractor | |
Original price was $14,720 in 2009 with hydro | |
Mahindra 2816 Engine | |
|---|---|
Mitsubishi 1.3L 3-cyl diesel | |
Engine details ...  |
Mahindra 2816 Power | |
|---|---|
Engine | 28 hp
20.9 kW |
Hydro PTO (claimed) | 21.1 hp
15.7 kW |
Gear PTO (claimed) | 23 hp
17.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Folding ROPS | |
Hydraulics | |
|---|---|
Type | open center |
Valves | 0 or 1 |
Pump flow | 7.8 gpm
29.5 lpm |
Steering flow | 3.5 gpm
13.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at ends) | 2,205 lbs
1000 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540 |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Weight | 2315 to 2458 pounds |
Front tire | 7x16 |
Rear tire | 11.2x24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 50 |
Battery volts | 12 |
Battery AH | 46 |
Engine
Engine Detail — 80.4 ci / 1.3 L Diesel
Manufacturer | Mitsubishi S3L2 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 80.4 ci
1.3 L |
Bore/Stroke | 3.071x3.622 inches
78 x 92 mm |
Power | 28 hp
20.9 kW |
Compression | 22:1 |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
9-speed | |
hydrostatic |
Transmission — 9 forward and 3 reverse
Gears | 9 forward and 3 reverse |
Transmission — infinite forward and reverse (3-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
Dimensions
Mahindra 2816 Tires | |
|---|---|
Ag front | 7x16 |
Ag rear | 11.2x24 |
Industrial front | 27x8.5-15 |
Industrial rear | 15x19.5 |
Dimensions | |
|---|---|
Length | 115 inches
292 cm |
Width | 59.4 inches
150 cm |
Gear Operating weight | 2315 lbs
1050 kg |
Hydro Operating weight | 2458 lbs
1114 kg |
Photos

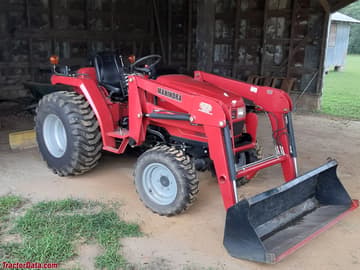

Mahindra 2816
Recommended Implements & Sizing Guide
Engineering recommendations for Mahindra 2816 based on its 28 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Mahindra 2816.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Mahindra 2816 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Mahindra 2816.
Converted Equivalents:
Horsepower (HP)28 hp
Kilowatts (kW)20.9 kW
Metric Horsepower (PS / CV)28.4 PS
Direct Competitor Comparison
Compare Mahindra 2816 against same-era industry alternatives in the same horsepower class.
Current Model
Mahindra
Mahindra 2816
Engine Power:Diesel (listed): 28 hp / 20.9 kW
★ Baseline Reference
