Mahindra 3016

The Mahindra 3016 is a tractor produced by Mahindra. It is equipped with a 80.4 ci 1.3 L engine. The rated power output is 28 hp 20.9 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1,230 lbs 557 kg.

Overview

	2011 - 16 SeriesCompact Utility tractorMitsubishi built
2011 -
16 Series
Compact Utility tractor
Mitsubishi built

2011 -
16 Series
Compact Utility tractor
Mitsubishi built

Production
Distributor	Mahindra
Manufacturer	Mitsubishi
Compact Utility tractor
Original price	$15,750 (2013 shuttle )
	$16,810 (2013 hydro )

Mahindra 3016 Engine
Mitsubishi 1.3L 3-cyl diesel
Fuel tank	7.1 gal 26.9 L
Engine details ...

Mahindra 3016 Power
Engine	28 hp 20.9 kW
Gear PTO (claimed)	23 hp 17.2 kW
Hydro PTO (claimed)	21.1 hp 15.7 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS.

Hydraulics
Type	open center
Valves	1 OptOptional
Pump flow	7.8 gpm 29.5 lpm
Steering flow	3.4 gpm 12.9 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift	2646 lbs 1200 kg

Power Take-off (PTO)
Gear Rear PTO	independent
Hydro Rear PTO	live
Rear PTO Type	540 (1.375)
Engine RPM	540@2376
Mid PTO	optional
Mid PTO Type	2000
Engine RPM	2000@2525

Dimensions & Tires
Weight	2437 to 2459 pounds
Front tire	7x16
Rear tire	11.2x24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	50
Battery volts	12
Battery AH	46

Engine

	2011 - 16 SeriesCompact Utility tractorMitsubishi built
2011 -
16 Series
Compact Utility tractor
Mitsubishi built

2011 -
16 Series
Compact Utility tractor
Mitsubishi built

Engine Detail — 80.4 ci / 1.3 L Diesel

Manufacturer	Mitsubishi
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	80.4 ci 1.3 L
Bore/Stroke	3.071x3.622 inches 78 x 92 mm
Power	28 hp 20.9 kW
Fuel system	indirect injection
Compression	22:1
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

	2011 - 16 SeriesCompact Utility tractorMitsubishi built
2011 -
16 Series
Compact Utility tractor
Mitsubishi built

2011 -
16 Series
Compact Utility tractor
Mitsubishi built

Transmission options
8-speed synchronized shuttle
hydrostatic

Transmission — 8 forward and reverse synchronized shuttle

Type	synchronized shuttle
Gears	8 forward and reverse
Clutch	dry disc

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Dimensions

	2011 - 16 SeriesCompact Utility tractorMitsubishi built
2011 -
16 Series
Compact Utility tractor
Mitsubishi built

2011 -
16 Series
Compact Utility tractor
Mitsubishi built

Mahindra 3016 Tires
Standard tires (ag)	Front: 7x16. Rear: 11.2x24
Lawn/turf front	25x8.5-14
Lawn/turf rear	13.6x16
Industrial front	27x8.5-15
Industrial rear	15x19.5

Dimensions
Length	121.3 inches 308 cm
Width	59.8 inches 151 cm
Gear Operating weight	2437 lbs 1105 kg
Hydro Operating weight	2459 lbs 1115 kg

Attachments

	2011 - 16 SeriesCompact Utility tractorMitsubishi built
2011 -
16 Series
Compact Utility tractor
Mitsubishi built

2011 -
16 Series
Compact Utility tractor
Mitsubishi built

Attachment overview
Front-end loader
Backhoe

Mahindra 3715 Backhoe
Backhoe type	Mahindra 3715 Backhoe
Weight	1,230 lbs 557 kg
Digging depth	94 inches 238 cm
2-Foot flat digging depth	92 inches 233 cm
Reach from pivot	127 inches 322 cm
Loading height	63 inches 160 cm
Bucket Rotation	175°
Swing Arc	180°
Bucket force	2,900 lbs 1315 kg
Dipperstick force	1,100 lbs 498 kg

Photos

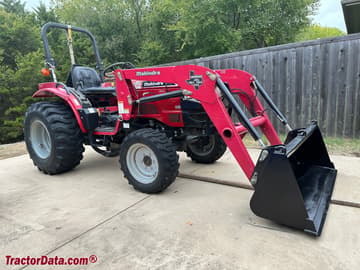

Mahindra 3016 HST compact utility tractor
