Massey Ferguson 174S

The Massey Ferguson 174S is a tractor produced by Massey Ferguson. It is equipped with a 236 ci 3.9 L engine. Transmission: 20 forward and 8 reverse. Operating weight: 2685 to 4995 pounds.

Fuel & Capacities

14 gal 53.0 L

Transmission

20 forward and 8 reverse

Operating Weight

2685 to 4995 pounds

Overview

	1986 - 1989 Orchard/Vineyard tractor

Production
Manufacturer	Massey Ferguson
Orchard/Vineyard tractor
Original price was $19,500 in 1989

Massey Ferguson 174S Engine
Perkins 3.9L 4-cyl diesel
Engine details ...

Massey Ferguson 174S Power
PTO (claimed)	57 hp 42.5 kW

Mechanical
Two- or four-wheel drive
Final drives	outboard planetary
Differential lock	mechanical rear
Power steering
Hydraulic wet disc brakes
Open operator station.

Capacity
Fuel	14 gal 53.0 L
Hydraulic system	10 gal 37.9 L

Hydraulics
Type	open center
Capacity	10 gal 37.9 L
Rear valves	2
Pump flow	9.2 gpm 34.8 lpm

Tractor hitch
Rear Type	II/I
Control	position and draft control
Rear lift (at ends)	5291 lbs 2399 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
2WD Wheelbase	81.5 inches 207 cm
4WD Wheelbase	79.3 inches 201 cm
Weight	2685 to 4995 pounds
Front tire	7.5L-15
2WD Rear tire	14.9-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	45
Battery volts	12

References

Massey-Ferguson Orchard/Vineyard Tractors published in 1986, by Massey Ferguson
Massey-Ferguson 174S published in 1985, by Massey Ferguson

Engine

Engine Detail — 236 ci / 3.9 L Diesel

Manufacturer	Perkins A4.236
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	236 ci 3.9 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Air cleaner	dry
Pre-heating	thermostart
Rated RPM	2200
Starter	electric
Starter volts	12
Oil capacity	7 qts 6.6 L
Coolant capacity	16 qts 15.1 L

Transmission

Transmission options
12-speed partially synchronized
20-speed creeper

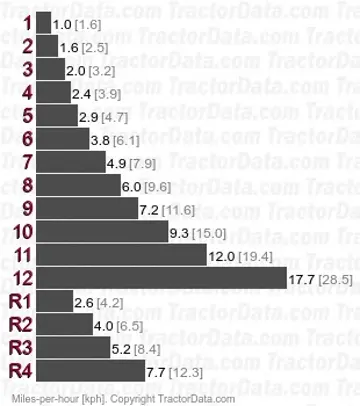

Transmission — 12 forward and 4 reverse partially synchronized

Type	partially synchronized
Gears	12 forward and 4 reverse
Clutch	279.4mm dry disc
Oil capacity	40 qts 37.9 L
Four synchronized gears in three ranges, plus reverse range.
With 14.9-24 rear tires.

Transmission — 20 forward and 8 reverse creeper

Type	creeper
Gears	20 forward and 8 reverse
Clutch	dry disc

Dimensions

Massey Ferguson 174S Tires
2WD Standard tires (ag)	Front: 7.5L-15. Rear: 14.9-24
4WD Standard tires (ag)	Front: 7.50-18. Rear: 14.9-24

Dimensions
2WD Wheelbase	81.5 inches 207 cm
4WD Wheelbase	79.3 inches 201 cm
Length	135.6 inches 344 cm
Width	52.4 inches*Minimum width. 133 cm
Height (steering wheel)	54.1 inches 137 cm
2WD Weight	2685 lbs 1217 kg
4WD Weight	4995 lbs 2265 kg
2WD Ground clearance	14.6 inches 37 cm
4WD Ground clearance	11.8 inches 29 cm
2WD Front tread	42.8 to 58.5 inches 108 to 148 cm
4WD Front tread	42.8 to 54.6 inches 108 to 138 cm
Rear tread	38.6 to 60.2 inches 98 to 152 cm

Photos

Massey Ferguson 174S tractor photo

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 174S.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
