Massey Ferguson 184
The Massey Ferguson 184 is a tractor produced by Massey Ferguson. It is equipped with a 235.8 ci 3.9 L engine. The rated power output is 68 hp 50.7 kW. Transmission: 12 forward and 4 reverse. Operating weight: 5490 lbs 2490 kg.
Engine Power
68 hp
50.7 kW
Fuel & Capacities
16 gal
60.6 L
Transmission
12 forward and 4 reverse
Operating Weight
5490 lbs
2490 kg
Massey Ferguson 184 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1980 - 1983
104 SeriesUtility tractorLandini built |
|---|---|
1980 - 1983 | |
104 Series | |
Utility tractor | |
Landini built | |
1980 - 1983 | |
|---|---|
104 Series | |
Utility tractor | |
Landini built |
Production | |
|---|---|
Distributor | Massey Ferguson |
Manufacturer | Landini |
Utility tractor | |
Built in Italy | |
Variants | |
|---|---|
184 | 2WD |
184-4 | 4WD |
184S | vineyard |
7500 | similar Landini model |
Massey Ferguson 184 Engine | |
|---|---|
Perkins 3.9L 4-cyl diesel | |
Fuel tank | 16 gal
60.6 L |
Engine details ...  | |
Massey Ferguson 184 Transmission | |
|---|---|
12-speed partially synchronized | |
Transmission details ...  |
Massey Ferguson 184 Power | |
|---|---|
Engine | 68 hp
50.7 kW |
PTO (claimed) | 62 hp
46.2 kW |
Drawbar (tested) | 51.04 hp
38.1 kW |
PTO (tested) | 62.45 hp
46.6 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Final drives | planetary |
Differential lock | mechanical rear |
Power steering | |
Dry disc brakes | |
Open operator station. Cab optional. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2415 psi
166.5 bar |
Pump flow | 7.4 gpm
28.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift (at ends) | 5842 lbs
2649 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | dry disc |
Rear PTO Type | 540 (1.375) |
540/1000 (1.375)OptOptional | |
Engine RPM | 540@1944 |
1000@1916 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 88.2 inches
224 cm |
Weight | 5490 lbs
2490 kg |
Front tire | 7.50-16 |
Rear tire | 16.9/14-30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
Battery AH | 92 |
References | |
|---|---|
 | |
Operator Instruction Book 154 - 174 - 184 - 194 (3300912M2)* | |
*Publication contains known errors. |
Engine
| 1980 - 1983
104 SeriesUtility tractorLandini built |
|---|---|
1980 - 1983 | |
104 Series | |
Utility tractor | |
Landini built | |
1980 - 1983 | |
|---|---|
104 Series | |
Utility tractor | |
Landini built |
Engine Detail — 235.8 ci / 3.9 L Diesel
Manufacturer | Perkins A4.236 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 235.8 ci
3.9 L |
Bore/Stroke | 3.875x5.00 inches
98 x 127 mm |
Power | 68 hp
50.7 kW |
Fuel system | direct injection |
Air cleaner | oil bath |
Compression | 16:1 |
Rated RPM | 2200 |
Idle RPM | 650-2390 |
Torque | 185.1 lb-ft
251.0 Nm |
Torque RPM | 1300 |
Firing order | 1-3-4-2 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 15.9 qts
15.0 L |
Transmission
| 1980 - 1983
104 SeriesUtility tractorLandini built |
|---|---|
1980 - 1983 | |
104 Series | |
Utility tractor | |
Landini built | |
1980 - 1983 | |
|---|---|
104 Series | |
Utility tractor | |
Landini built |

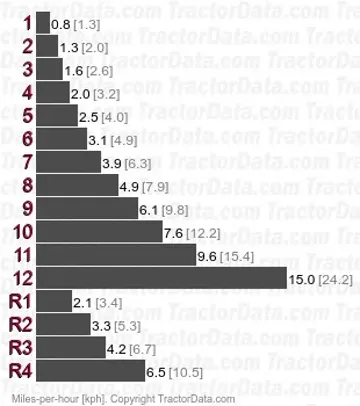

Transmission — 12 forward and 4 reverse partially synchronized
Type | partially synchronized |
Gears | 12 forward and 4 reverse |
Clutch | 279.4mm dry disc |
Four synchronized gears in three ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift range. | |
With 16.9-30 rear tires. | |
 | |
Dimensions
| 1980 - 1983
104 SeriesUtility tractorLandini built |
|---|---|
1980 - 1983 | |
104 Series | |
Utility tractor | |
Landini built | |
1980 - 1983 | |
|---|---|
104 Series | |
Utility tractor | |
Landini built |
Massey Ferguson 184 Tires | |
|---|---|
Standard tires (ag) | Front: 7.50-16. Rear: 16.9/14-30 |
Optional tires (ag) | Front: 7.50-16. Rear: 13.6/12-36 |
Dimensions | |
|---|---|
Wheelbase | 88.2 inches
224 cm |
Length | 142.9 inches
362 cm |
Width | 68.1 inches*Minimum width
172 cm |
Weight | 5490 lbs
2490 kg |
Clearance (front axle) | 20.6 inches
52 cm |
Front tread | 55.1 to 74.8 inches
139 to 189 cm |
Rear tread | 51.2 to 78.4 inches
130 to 199 cm |
Massey Ferguson 184 Height | |
|---|---|
Steering wheel | 64.6 inches
164 cm |
Hood | 56.3 inches
143 cm |
ROPS | 90.2 inches
229 cm |
Tests
| 1980 - 1983
104 SeriesUtility tractorLandini built |
|---|---|
1980 - 1983 | |
104 Series | |
Utility tractor | |
Landini built | |
1980 - 1983 | |
|---|---|
104 Series | |
Utility tractor | |
Landini built |
Nebraska Tractor Test 1392 | |
|---|---|
Diesel 12-speed 4WD
May 11 - 20, 1981
Link: Nebraska Tractor Test 1392 file | |
PTO performance | |
Power at rated engine speed | 62.45 hp
46.6 kW |
Fuel use | 4.1 gal/hour
15.5 l/hour |
Power at rated PTO speed | 59.56 hp
44.4 kW |
Fuel use | 3.6 gal/hour
13.6 l/hour |
Drawbar performance | |
Max power | 51.04 hp
38.1 kW |
Fuel use | 4.0 gal/hour
15.1 l/hour |
Gear 9 used for power test. | |
Max pull | 7106 lbs
3223 kg |
Gear 5 used for pull test. | |
Attachments
| 1980 - 1983
104 SeriesUtility tractorLandini built |
|---|---|
1980 - 1983 | |
104 Series | |
Utility tractor | |
Landini built | |
1980 - 1983 | |
|---|---|
104 Series | |
Utility tractor | |
Landini built |
Photos
Massey Ferguson 184 tractor photo
