Massey Ferguson 3070

The Massey Ferguson 3070 is a tractor produced by Massey Ferguson. It is equipped with a 236 ci 3.9 L engine. Transmission: SpeedShift. Operating weight: 9652 to 10192 pounds.

Fuel & Capacities

50 gal 189.2 L

Transmission

SpeedShift

Operating Weight

9652 to 10192 pounds

Overview

	1986 - 1992 3000 SeriesRow-Crop tractor 3000 Series Row-Crop tractor

Production
Manufacturer	Massey Ferguson
Row-Crop tractor
Original price was $41,800 in 1992

Massey Ferguson 3070 Engine
Perkins 3.9L 4-cyl diesel
Engine details ...

Massey Ferguson 3070 Power
PTO (claimed)	80 hp 59.7 kW

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Capacity
Fuel	50 gal 189.2 L
Hydraulic system	15.9 gal 60.2 L

Hydraulics
Type	open center
Capacity	15.9 gal 60.2 L
Pressure	2610 psi 180.0 bar
Valves	2 to 4
Pump flow	13.2 gpm 50.0 lpm

Tractor hitch
Rear Type	II
Control	position control and lower-link draft sensing
Rear lift (at ends)	10617 lbs 4815 kg
Rear lift (at 24"/610mm)	6900 lbs 3129 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	96.9 inches 246 cm
4WD Wheelbase	97 inches 246 cm
Weight	9652 to 10192 pounds
Front tire	10.00-16
Rear tire	18.4-34 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	55
Batteries	2
Battery CCA	420
Battery volts	12

References

Loaders - Compact and Agricultural published in 1989, by Massey Ferguson
MF 3000 & 3100 Series published in 1991, by Massey Ferguson
MF 3000 Product Information Manual (0783/0986) published in 1986*
*Publication contains known errors.

Engine

Engine Detail — 236 ci / 3.9 L Diesel

Manufacturer	Perkins AT4.236
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	236 ci 3.9 L
Rated RPM	2200
Torque	253 lb-ft 343.1 Nm
Torque RPM	1400
Starter volts	12

Transmission

Transmission options
16-speed fully synchronized
32-speed two-speed power shift

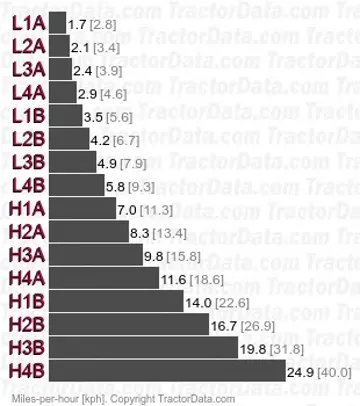

Transmission — 16 forward and reverse fully synchronized

Type	fully synchronized
Gears	16 forward and reverse
Clutch	hydraulic cerametallic disc
With 16.9/14-38 rear tires.

Transmission — SpeedShift

Transmission	SpeedShift
Type	two-speed power shift
Gears	32 forward and reverse

Dimensions

Massey Ferguson 3070 Tires
Standard tires (ag)	Front: 10.00-16. Rear: 18.4-34 (2WD)
	Front: 14.9-24. Rear: 18.4-34 (4WD)

Dimensions
2WD Wheelbase	96.9 inches 246 cm
4WD Wheelbase	97 inches 246 cm
2WD Length	160.8 inches 408 cm
4WD Length	164.6 inches 418 cm
Width	78.2 inches 198 cm
2WD Weight	9652 lbs 4378 kg
4WD Weight	10192 lbs 4623 kg
2WD Clearance (front axle)	24.3 inches 61 cm
4WD Clearance (front axle)	157.7 inches 400 cm
Clearance (drawbar)	16.5 inches 41 cm
2WD Front tread	60.7 to 91.9 inches 154 to 233 cm
4WD Front tread	62.3 to 81.6 inches 158 to 207 cm
Rear tread	60.6 to 84.5 inches 153 to 214 cm

Massey Ferguson 3070 Height
2WD Steering wheel	80.5 inches 204 cm
4WD Steering wheel	80.2 inches 203 cm
Cab	108.5. inches 275 cm
Exhaust	106.6 inches 270 cm

Photos

Massey Ferguson 3070

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 3070.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
