Massey Ferguson 3630

The Massey Ferguson 3630 is a tractor produced by Massey Ferguson. It is equipped with a 354 ci 5.8 L engine. Transmission: 16 forward and reverse. Operating weight: 11729 lbs (2WD) 5320 kg.

Overview

	1987 - 1990 3600 SeriesRow-Crop tractor
1987 - 1990
3600 Series
Row-Crop tractor

Production
Manufacturer	Massey Ferguson
Row-Crop tractor
Built in Beauvais, France
Original price	$48,000 (1990)

Massey Ferguson 3630 Engine
Perkins 5.8L 6-cyl diesel
Engine details ...

Massey Ferguson 3630 Transmission
16-speed two-speed power shift
Transmission details ...

Massey Ferguson 3630 Power
PTO (claimed)	115 hp 85.8 kW

Mechanical
Two- or four-wheel drive
Steering	hydrostatic power
Hydraulic wet disc brakes
Cab standard with air-conditioning. Autotronic standard. Datatronic optional.

Capacity
Fuel	69 gal 261.2 L
Hydraulic system	22.5 gal 85.2 L

Hydraulics
Capacity	22.5 gal 85.2 L
Valves	2 to 4
Pump flow	14.4 gpm 54.5 lpm
Total flow	35.8 gpm 135.5 lpm
Steering flow	15.4 gpm 58.3 lpm

Tractor hitch
Rear Type	II
Control	position control and electronic draft control
Rear lift (at 24"/610mm)	9400 lbs 4263 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1992
	1000@2090

Dimensions & Tires
Wheelbase	109.3 inches (2WD) 277 cm
	108.8 inches (4WD) 276 cm
Weight	11729 to 12809 pounds
Front tire	14L-16
Rear tire	16.9-38
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Loaders - Compact and Agricultural published in 1989, by Massey Ferguson
New 3600 published in 1988, by Massey Ferguson

Engine

Engine Detail — 354 ci / 5.8 L Diesel

Manufacturer	Perkins
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	354 ci 5.8 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Fuel system	direct injection
Cooling system	viscostatic fan
Air cleaner	dual dry element
Rated RPM	2400
Torque	346 lb-ft 469.2 Nm
Torque RPM	1600
Starter volts	12
Oil capacity	20 qts 18.9 L
Coolant capacity	28.5 qts 27.0 L

Transmission

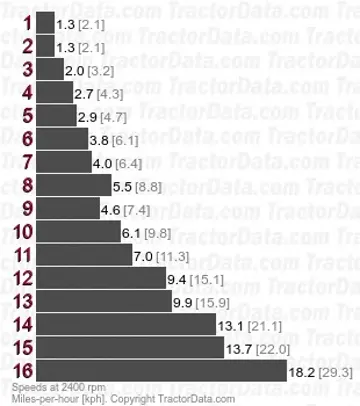

Transmission — 16 forward and reverse two-speed power shift

Type	two-speed power shift
Gears	16 forward and reverse
Clutch	352mm cerametallic hydraulic dry disc
Eight gears with a two-speed power shift.
With 18.4-38 rear tires.

Dimensions

Massey Ferguson 3630 Tires
Ag front	14L-16 (2WD)
	11.00-16 (2WD)
	13.6-28 (4WD)
	14.9-28 (4WD)
	16.9-28 (4WD)
Ag rear	16.9-38
	18.4-38
	20.8-38

Dimensions
Wheelbase	109.3 inches (2WD) 277 cm
	108.8 inches (4WD) 276 cm
Length	182.8 inches (2WD) 464 cm
	183.5 inches (4WD) 466 cm
Width	94 inches (min) 238 cm
Height	113.7 inches 288 cm
Weight	11729 lbs (2WD) 5320 kg
	12809 lbs (4WD) 5810 kg
Ground clearance	17.3 inches 43 cm
Front tread	60.7 to 91.9 inches 154 to 233 cm (2WD)
Front tread	66.4 to 85.6 inches 168 to 217 cm (4WD)
Rear tread	60 to 97.2 inches 152 to 246 cm (row-crop)
Rear tread	60 to 131.6 inches 152 to 334 cm (row-crop long axle)
Rear tread	66.1 to 93.3 inches 167 to 236 cm (Western)
Rear tread	66.1 to 127.6 inches 167 to 324 cm (Western long axle)

Attachments

Attachment overview
Massey Ferguson 246 loader
Massey Ferguson 856 loader
The model 246 loader was specified for tractors with two-wheel drive while the model 856 loader was specified for tractors with four-wheel drive.

Photos

Massey Ferguson 3630 tractor photo
