Massey Ferguson 4220

The Massey Ferguson 4220 is a tractor produced by Massey Ferguson. It is equipped with a 164.8 ci 2.7 L engine. The listed engine power is Diesel (listed): 60 hp / 44.7 kW. Transmission: 12 forward and 4 reverse. Operating weight: 5258 to 5809 pounds.

Engine Power

Diesel (listed): 60 hp / 44.7 kW

Fuel & Capacities

22.2 gal 84.0 L

Transmission

12 forward and 4 reverse

Operating Weight

5258 to 5809 pounds

Overview

	1997 - 2001 4200 SeriesUtility tractor 4200 Series Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor

Massey Ferguson 4220 Engine
Perkins 2.7L 3-cyl diesel
Engine details ...

Massey Ferguson 4220 Power
Engine	60 hp 44.7 kW
PTO (claimed)	52.2 hp 38.9 kW

Mechanical
Two- or four-wheel drive
4WD Differential lock	electro-hydraulic front and rear
2WD Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
Cab standard with heater.

Capacity
Fuel	22.2 gal 84.0 L
Hydraulic system	13.2 gal 50.0 L

Hydraulics
Capacity	13.2 gal 50.0 L
Pressure	3046 psi 210.0 bar
Valves	1 to 4
Pump flow	10 gpm 37.9 lpm
Total flow	14.5 gpm 54.9 lpm
	15.85 gpm*With 540E PTO. 60.0 lpm

Tractor hitch
Rear Type	II/I
Control	position control and mechanical draft control

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic
Rear PTO Type	540
	540/540E OptOptional
Engine RPM	540@1789
	540@1979 *With 540E
	540E@1421

Dimensions & Tires
2WD Wheelbase	83.9 inches 213 cm
4WD Wheelbase	87.8 inches 223 cm
Weight	5258 to 5809 pounds
Front tire	7.50-16
2WD Rear tire	12.4R32
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

Engine

Engine Detail — 164.8 ci / 2.7 L Diesel

Manufacturer	Perkins 903T
Configuration	turbocharged diesel, 3-cylinder, liquid-cooled
Displacement	164.8 ci 2.7 L
Bore/Stroke	3.74x5.00 inches 95 x 127 mm
Power	60 hp 44.7 kW
Fuel system	direct injection
Air cleaner	dry element
Rated RPM	2250
Torque	171.1 lb-ft 232.0 Nm
Torque RPM	1400
Starter	electric
Starter volts	12
Coolant capacity	10.8 qts 10.2 L

Transmission

Transmission options
8-speed mechanical shuttle
12-speed synchromesh

Transmission — 8 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	8 forward and reverse
Clutch	305mm dry disc
Four gears (1-4) in two ranges (Low/High) with mechanical shuttle.
With 12.4R32 rear tires.

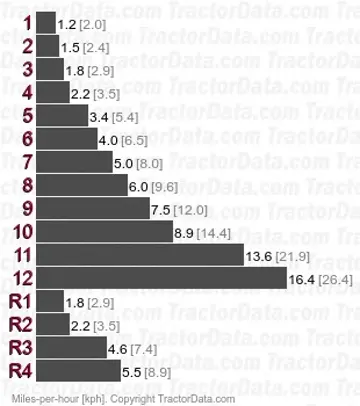

Transmission — 12 forward and 4 reverse synchromesh

Type	synchromesh
Gears	12 forward and 4 reverse
Clutch	305mm dry disc
Three gears (1-3) plus reverse (R) in two ranges (Low/High) with additional two-speed synchronized range shift.
With 12.4R32 rear tires.

Dimensions

Massey Ferguson 4220 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 12.4R32
4WD Standard tires (ag)	Front: 8.3R24. Rear: 12.4R32

Dimensions
2WD Wheelbase	83.9 inches 213 cm
4WD Wheelbase	87.8 inches 223 cm
Length	147.2 inches 373 cm
Width	74.8 inches*Minimum width 189 cm
Height (cab)	94.1 inches 239 cm
2WD Weight	5258 lbs 2385 kg
4WD Weight	5809 lbs 2634 kg
Ground clearance	11 inches 27 cm
2WD Front tread	49.2 to 73.2 inches 124 to 185 cm
4WD Front tread	44.1 to 64.2 inches 112 to 163 cm
Rear tread	52 to 72.1 inches 132 to 183 cm

Photos

Massey Ferguson 4220 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 4220 based on its 60 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 4220.

Estimated Continuous Field Runtime: 7.1 hrs

Approximately 7.1 hours of continuous field operation at ~75% rated power on a full tank (22.2 gal / 84 L).

Estimated 75% Load Fuel Burn~3.1 gal/hr (11.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
