massey ferguson 5713sl
 | 2016 - 2018
5700SL SeriesUtility tractor | 2016 - 2018 | 5700SL Series | Utility tractor |
|---|---|---|---|---|
2016 - 2018 | ||||
5700SL Series | ||||
Utility tractor | ||||
2016 - 2018 | |
|---|---|
5700SL Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | Massey Ferguson (a part of AGCO) |
Utility tractor | |
Built in Beauvais, France | |
Original price was $104,621 in 2018 | |
Massey Ferguson 5713SL Engine | |
|---|---|
AGCO Power 4.4L 4-cyl diesel | |
Fuel tank | 47.5 gal
179.8 L |
Exhaust fluid (DEF) | 6.6 gal
25.0 L |
Engine details ...  | |
Massey Ferguson 5713SL Transmissions | |
|---|---|
16-speed four-speed power shift | |
24-speed six-speed power shift | |
Transmission details ...  |
Massey Ferguson 5713SL Power | |
|---|---|
Engine | 125 hp
93.2 kW |
PTO (claimed) | 104 hp
77.6 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | planetary |
Differential lock | electro-hydraulic front and rear |
Power steering | |
Hydraulic wet disc brakes | |
Trailer brakes | hydraulic OptOptional |
| pneumatic OptOptional |
Cab standard with air-conditioning. Auto-Guide 3000 ((Optional)) | |

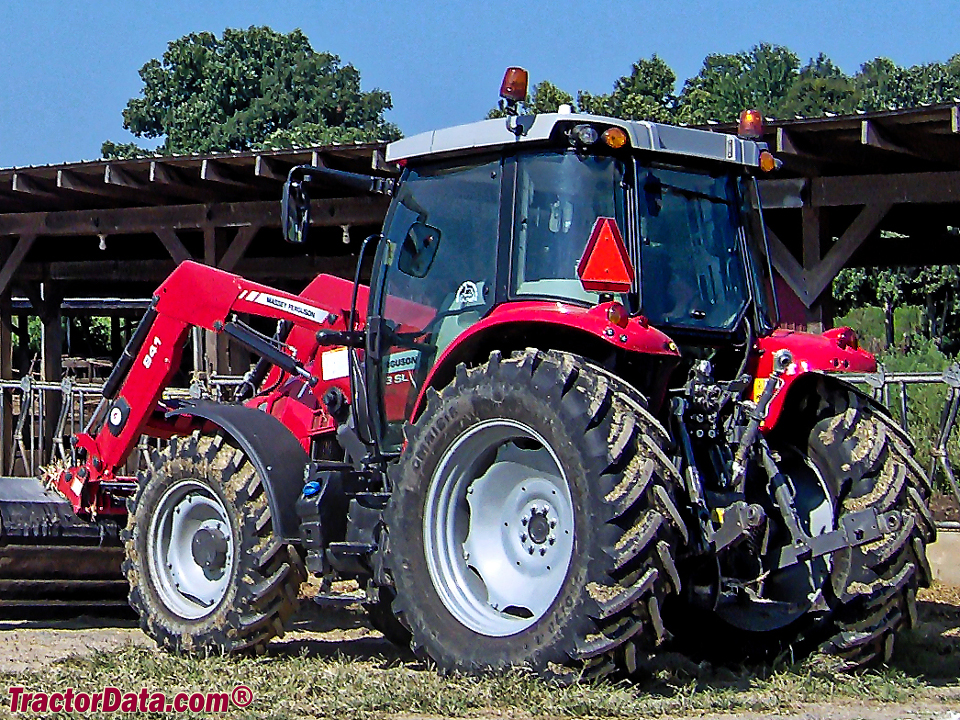

Photos | |
|---|---|
 | |
Massey Ferguson 5713SL photos...  |
Hydraulics | |
|---|---|
Type | open center |
| closed center load-sensing OptOptional |
Pressure | 2900 psi
200.0 bar |
Valves | 1 to 4 |
Pump flow | 15 gpm
56.8 lpm |
| 26 gpm (Twin-Flow)
98.4 lpm |
| 29 gpm (CCLS)
109.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Control | lower-link draft sensing |
Rear lift (at 24"/610mm) | 8575 lbs
3889 kg |
Drawbar | Cat. 2 |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540/540E (1.375) |
| 540/540E/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 100.4 inches
255 cm |
Weight | 8929 to 10582 pounds |
Front tire | 380/85R24 |
Rear tire | 460/85R34 |
Full dimensions and tires ...  | |
Massey Ferguson 5713SL attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Classic Charging amps | 120 |
Deluxe Charging amps | 175 |
Battery CCA | 600 |
Battery volts | 12 |
Battery Group | 1 |
References | |
|---|---|
 | |
5700SL Series published in 2016, by Massey Ferguson | |
MF 5700 SL published in 2015, by Massey Ferguson | |
5700SL Series Mid-Range Tractors published in 2016, by Massey Ferguson | |
MF 5700 SL Product Book published in 2015, by Massey Ferguson |
