Massey Ferguson 6150

The Massey Ferguson 6150 is a tractor produced by Massey Ferguson. It is equipped with a 244 ci 4.0 L engine. Transmission: Dynashift. Operating weight: 9606 to 10224 pounds.

Fuel & Capacities

42.3 gal 160.1 L

Transmission

Dynashift

Operating Weight

9606 to 10224 pounds

Overview

	1995 - 1998 6100 SeriesRow-Crop tractor 6100 Series Row-Crop tractor

Production
Manufacturer	Massey Ferguson
Row-Crop tractor
Original price was $47,800 in 1998

Massey Ferguson 6150 Engine
Perkins 4.0L 4-cyl diesel
Engine details ...

Massey Ferguson 6150 Power
PTO (claimed)	86 hp 64.1 kW

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
QuietView cab standard with air-conditioning.

Capacity
Fuel	42.3 gal 160.1 L
Hydraulic system	18 gal 68.1 L

Hydraulics
Type	open center
Capacity	18 gal 68.1 L
Pressure	2931 psi 202.1 bar
Valves	2 to 4
Pump flow	14.9 gpm 56.4 lpm

Tractor hitch
Rear Type	II
Control	electronic draft control
Rear lift (at ends)	11960 lbs 5425 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000
Engine RPM	540@1980
	540E@1550
	1000@2000
	1000E@1550

Dimensions & Tires
Wheelbase	100 inches 254 cm
Weight	9606 to 10224 pounds
Front tire	10.00-16
Rear tire	18.4R-34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Batteries	2
Battery volts	12

References

MF 6100 & 8100 Series published in 1995, by Massey Ferguson

Engine

Engine Detail — 244 ci / 4.0 L Diesel

Manufacturer	Perkins 1004-4
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	244 ci 4.0 L
Bore/Stroke	3.94x5.00 inches 100 x 127 mm
Air cleaner	dual dry element
Rated RPM	2200
Starter volts	12
Coolant capacity	18 qts 17.0 L

Transmission

Transmission options
16-speed synchronized
32-speed four-speed power shift

Transmission — Speedshift

Transmission	Speedshift
Type	synchronized
Gears	16 forward and reverse
Clutch	230mm wet disc
Four gears in two ranges with two-speed power shift. Speedshift available with optional creeper range providing 24 total speeds forward and reverse.
With 16.9-38 rear tires. Also available in 40 KPH version.

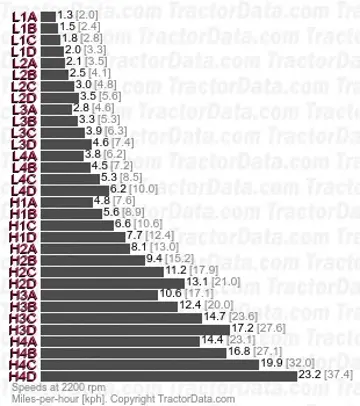

Transmission — Dynashift

Transmission	Dynashift
Type	four-speed power shift
Gears	32 forward and reverse
Clutch	230mm wet disc
Two ranges, each with four power shift gears in four synchronized ranges plus shuttle.
With 16.9R38 rear tires.

Dimensions

Massey Ferguson 6150 Tires
Ag front	10.00-16
Ag rear	18.4R-34

Dimensions
Wheelbase	100 inches 254 cm
Length	162 inches 411 cm
Width	74 inches 187 cm
Height (cab)	106 inches 269 cm
2WD Weight	9606 lbs 4357 kg
4WD Weight	10224 lbs 4637 kg
2WD Front tread	57.3 to 97.5 inches 145 to 247 cm
4WD Front tread	61.7 to 81 inches 156 to 205 cm
Rear tread	60.3 to 86.1 inches 153 to 218 cm

Photos

Massey Ferguson 6150

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 6150.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
