Massey Ferguson 6180
The Massey Ferguson 6180 is a tractor produced by Massey Ferguson. It is equipped with a 365 ci 6.0 L engine. Transmission: Dynashift. Operating weight: 11153 to 11385 pounds.
Fuel & Capacities
42.3 gal
160.1 L
Transmission
Dynashift
Operating Weight
11153 to 11385 pounds
Massey Ferguson 6180 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1995 - 1998
6100 SeriesRow-Crop tractor |
|---|---|
1995 - 1998 | |
6100 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Massey Ferguson |
Row-Crop tractor | |
Original price was $58,000 in 1998 | |
Massey Ferguson 6180 Engine | |
|---|---|
Perkins 6.0L 6-cyl diesel | |
Engine details ...  |
Massey Ferguson 6180 Power | |
|---|---|
PTO (claimed) | 110 hp
82.0 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
QuietView cab standard with air-conditioning. |
Capacity | |
|---|---|
Fuel | 42.3 gal
160.1 L |
Hydraulic system | 18 gal
68.1 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 18 gal
68.1 L |
Pressure | 2931 psi
202.1 bar |
Valves | 2 to 4 |
Pump flow | 14.9 gpm
56.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | electronic draft control |
Rear lift (at ends) | 9590 lbs
4350 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540/1000 |
Engine RPM | 540@1980 |
540E@1550 | |
1000@2000 | |
1000E@1550 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 106 inches
269 cm |
Weight | 11153 to 11385 pounds |
Front tire | 10.00-16 |
Rear tire | 18.4R-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Batteries | 2 |
Battery volts | 12 |
References | |
|---|---|
 | |
MF 6100 & 8100 Series published in 1995, by Massey Ferguson |
Engine
Engine Detail — 365 ci / 6.0 L Diesel
Manufacturer | Perkins 1006-6T |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 365 ci
6.0 L |
Bore/Stroke | 3.94x5.00 inches
100 x 127 mm |
Air cleaner | dual dry element |
Rated RPM | 2200 |
Starter volts | 12 |
Coolant capacity | 26.4 qts
25.0 L |
Transmission
Transmission options | |
|---|---|
16-speed synchronized | |
32-speed four-speed power shift |

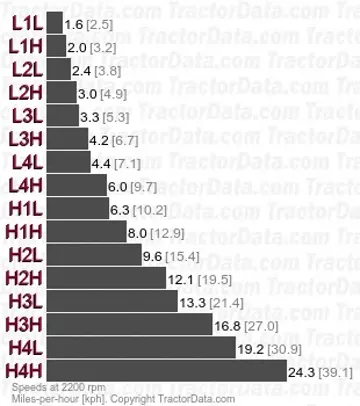

Transmission — Speedshift
Transmission | Speedshift |
Type | synchronized |
Gears | 16 forward and reverse |
Clutch | 230mm wet disc |
Four gears in two ranges with two-speed power shift. Speedshift available with optional creeper range providing 24 total speeds forward and reverse. | |
With 20.8-38 rear tires. | |
 | |

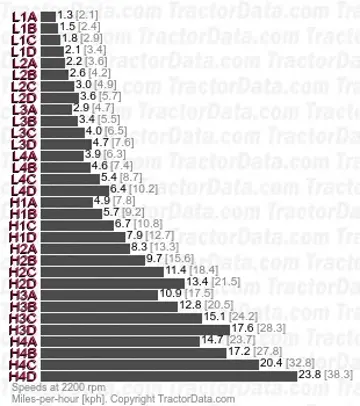

Transmission — Dynashift
Transmission | Dynashift |
Type | four-speed power shift |
Gears | 32 forward and reverse |
Clutch | 230mm wet disc |
Two ranges, each with four power shift gears in four synchronized ranges plus shuttle. | |
With 18.4R38 rear tires. | |
 | |
Dimensions
Massey Ferguson 6180 Tires | |
|---|---|
Ag front | 10.00-16 |
Ag rear | 18.4R-38 |
Dimensions | |
|---|---|
Wheelbase | 106 inches
269 cm |
Length | 178 inches
452 cm |
Width | 76 inches
193 cm |
Height (cab) | 109 inches
276 cm |
2WD Weight | 11153 lbs
5059 kg |
4WD Weight | 11385 lbs
5164 kg |
2WD Front tread | 60.5 to 99.6 inches
153 to 252 cm |
4WD Front tread | 61.6 to 80.5 inches
156 to 204 cm |
Rear tread | 60.3 to 88.2 inches
153 to 224 cm |
Photos
Massey Ferguson 6180 with 1048 front-end loader.
Massey Ferguson 6180 with 1048 front-end loader.
