Massey Ferguson 8S.205

The Massey Ferguson 8S.205 is a tractor produced by Massey Ferguson. It is equipped with a 449.4 ci 7.4 L engine. The rated power output is 202.5 hp 151.0 kW. Transmission: Dyna-VT. Operating weight: 19180 to 22046 pounds.

Overview

	2020 - 8S SeriesRow-Crop tractor
2020 -
8S Series
Row-Crop tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Row-Crop tractor

Massey Ferguson 8S.205 Engine
AGCO Power 7.4L 6-cyl diesel
Fuel tank	121.5 gal 459.9 L
	132 gal (Dyna-VT) 499.6 L
Exhaust fluid (DEF)	11.4 gal 43.1 L
Engine details ...

Massey Ferguson 8S.205 Power
Engine	202.5 hp 151.0 kW
PTO (claimed)	183.7 hp 137.0 kW

Mechanical
Four-wheel drive
Differential lock	automatic front and rear
Power steering
Trailer brakes	pneumatic
	hydraulic OptOptional
Cab standard with air-conditioning.

Hydraulics
Type	closed center load-sensing
Pressure	2901 psi 200.0 bar
Rear valves	5 OptOptional
Front valves	2 OptOptional
Pump flow	39.6 gpm 149.9 lpm
	54.2 gpmOptOptional 205.1 lpm

Tractor hitch
Rear Type	III
Control	position and draft control
Rear lift (at ends)	22046 lbs 10000 kg
Front lift	10582 lbs 4799 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
	1000 (1.75)
Engine RPM	540@1867
	540E@1499
	1000@1903
	1000E@1528
Front PTO	independent
Front PTO Type	1000
Engine RPM	1000@1920

Dimensions & Tires
Wheelbase	120.1 inches 305 cm
Weight	19180 to 22046 pounds
Front tire	540/65R30
Rear tire	650/65R42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
MF 8S published in 2020, by Massey Ferguson
MF 8S published in 2022, by Massey Ferguson
MF 8S Series published in 2023, by Massey Ferguson

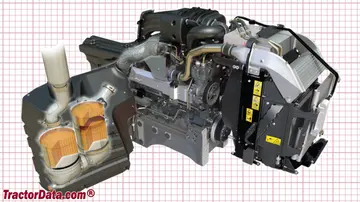

Engine

Engine Detail — 449.4 ci / 7.4 L Diesel

Manufacturer	AGCO Power
Configuration	turbocharged intercooled diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	449.4 ci 7.4 L
Bore/Stroke	4.252x5.276 inches 108 x 134 mm
Emissions	Stage 5
Power	202.5 hp 151.0 kW
Maximum Power	221.9 hp 165.5 kW
Fuel system	common rail
Rated RPM	1850
Torque	701 lb-ft 950.6 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Massey Ferguson 8S.205 Engine

Transmission

Transmission options
28-speed seven-speed power shift
continuously-variable transmission

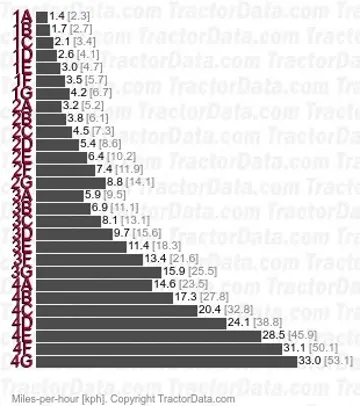

Transmission — Dyna-7

Transmission	Dyna-7
Type	seven-speed power shift
Gears	28 forward and reverse
Seven power shift gears (A-G) in four ranges (1-4).

Massey Ferguson 8S.205 Transmission

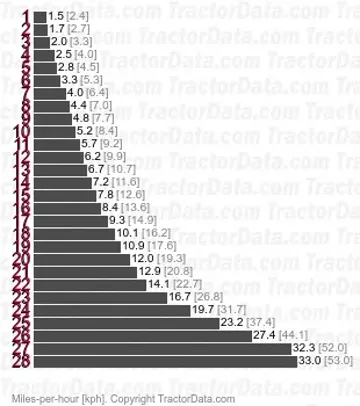

Transmission — Dyna E-Power

Transmission	Dyna E-Power
Type	seven-speed power shift
Gears	28 forward and reverse
Seven power shift gears in four ranges with dual clutches.

Massey Ferguson 8S.205 Transmission

Transmission — Dyna-VT

Transmission	Dyna-VT
Type	continuously-variable transmission
Gears	infinite forward and reverse

Massey Ferguson 8S.205 Transmission

Dimensions

Massey Ferguson 8S.205 Tires
Standard tires (ag)	Front: 540/65R30. Rear: 650/65R42
Optional tires (ag)	Front: 600/70R30. Rear: 650/75R42
	Front: 720/55R30. Rear: 900/50R42

Dimensions
Wheelbase	120.1 inches 305 cm
Length	211.6 inches 537 cm
Height (cab)	133.5 inches 339 cm
	134.3 inches (Dyna-VT) 341 cm

Massey Ferguson 8S.205 Weight
Shipping	19180 lbs 8700 kg
Operating	22046 lbs 10000 kg
Max capacity	30203 lbs 13700 kg

Photos

Massey Ferguson 8S.205 tractor.
