McConnell-Marc 465

The McConnell-Marc 465 is a tractor produced by Mcconnell Marc. It is equipped with a 239.8 ci 3.9 L engine. The listed engine power is Diesel (listed): 67 hp / 50.0 kW. Transmission: 8 forward and 2 reverse. Operating weight: 6280 lbs 2848 kg.

Engine Power

Diesel (listed): 67 hp / 50.0 kW

Fuel & Capacities

Diesel

Transmission

8 forward and 2 reverse

Operating Weight

6280 lbs 2848 kg

Overview

	2001 - 2005 Utility tractorJaingsu built Utility tractor Jaingsu built

Production
Distributor	McConnell-Marc
Manufacturer	Jaingsu
Utility tractor
Built in China

McConnell-Marc 465 Engine
3.9L diesel
Engine details ...

McConnell-Marc 465 Transmission
8-speed gear
Transmission details ...

McConnell-Marc 465 Power
Engine	67 hp 50.0 kW

Mechanical
Four-wheel drive
Power steering
Disc brakes
Two-post ROPS.

Tractor hitch
Rear Type	II

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540

Dimensions & Tires
Wheelbase	85 inches 215 cm
Weight	6280 lbs 2848 kg
Front tire	9.50-24
Rear tire	14.9-28
Full dimensions and tires ...

Engine

Engine Detail — 239.8 ci / 3.9 L Diesel

Fuel Type	Diesel
Configuration	liquid-cooled
Displacement	239.8 ci 3.9 L
Power	67 hp 50.0 kW
Rated RPM	2200

Transmission

Transmission — 8 forward and 2 reverse gear

Type	gear
Gears	8 forward and 2 reverse

Dimensions

McConnell-Marc 465 Tires
Ag front	9.50-24
Ag rear	14.9-28

Dimensions
Wheelbase	85 inches 215 cm
Length	141 inches 358 cm
Height	92 inches 233 cm
Shipping weight	6280 lbs 2848 kg

Photos

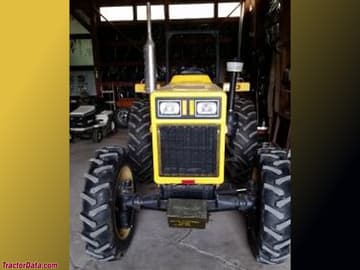

McConnell-Marc 465

Recommended Implements & Sizing Guide

Engineering recommendations for Mcconnell Marc McConnell-Marc 465 based on its 67 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Mcconnell Marc McConnell-Marc 465.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Mcconnell Marc McConnell-Marc 465 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Mcconnell Marc McConnell-Marc 465.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)67 hp

Kilowatts (kW)50 kW

Metric Horsepower (PS / CV)67.9 PS

Direct Competitor Comparison

Compare McConnell-Marc 465 against same-era industry alternatives in the same horsepower class.
