McCormick Intl F75

The McCormick Intl F75 is a tractor produced by Mccormick Intl. It is equipped with a 268 ci 4.4 L engine. The rated power output is 68 hp 50.7 kW. Transmission: 30 forward and reverse. Operating weight: 5766 to 6714 pounds.

Overview

	2004 - 2008 F SeriesOrchard/Vineyard tractor
2004 - 2008
F Series
Orchard/Vineyard tractor

Production
Manufacturer	McCormick Intl (a part of Argo)
Orchard/Vineyard tractor

Variants
F75	standard narrow
F75XL	wide deluxe

McCormick Intl F75 Engine
Perkins 4.4L 4-cyl diesel
F/GE Fuel tank	12.7 gal 48.1 L
F/GE Fuel tank	19.3 gal*With optional 25L tank 73.1 L
XL Fuel tank	17.2 gal 65.1 L
XL Fuel tank	23.8 gal*With optional 25L tank 90.1 L
Engine details ...

McCormick Intl F75 Power
Engine	68 hp 50.7 kW
PTO (claimed)	63 hp 47.0 kW

Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Two-post mid-mount folding ROPS. Cab optional.

Hydraulics
Type	open center
F/GE Valves	2
XL Valves	3
Pump flow	13.8 gpm 52.2 lpm
Total flow	21.7 gpm 82.1 lpm
Steering flow	7.9 gpm 29.9 lpm

Tractor hitch
Rear Type	II
Rear lift	5732 lbs 2600 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	dry disc
	wet disc *With power shuttle transmissions
Rear PTO Type	540/750
	540/1000

Dimensions & Tires
2WD Wheelbase	85.6 inches 217 cm
4WD Wheelbase	84 inches 213 cm
Weight	5766 to 6714 pounds
Front tire	7.50-16
Rear tire	14.9R24
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	85

References
F Series published in 2006, by McCormick

Engine

Engine Detail — 268 ci / 4.4 L Diesel

Manufacturer	Perkins 1104C-44
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	268 ci 4.4 L
Bore/Stroke	4.134x5.00 inches 105 x 127 mm
Emissions	Tier II
Power	68 hp 50.7 kW
Fuel system	direct injection
Rated RPM	2200
Torque	201 lb-ft 272.6 Nm
Starter	electric
Starter volts	12

McCormick Intl F75 Engine

Transmission

Transmission options
15-speed mechanical shuttle
15-speed power shuttle
30-speed two-speed power shift

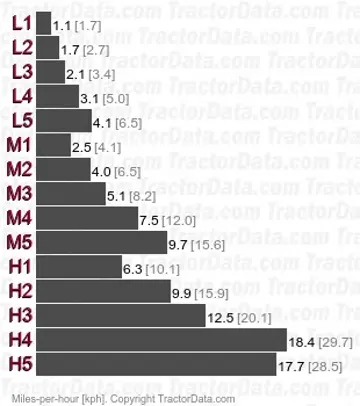

Transmission — 15 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	15 forward and reverse
Clutch	279mm mechanical dry disc
Five gears in three ranges with mechanical shuttle. Also available with creeper range, providing 20 speeds.
With 16.9R24 rear tires. Reverse speeds are 1% faster than forward.

Transmission — 15 forward and reverse power shuttle

Type	power shuttle
Gears	15 forward and reverse
Clutch	wet disc
Five gears in three ranges with power shuttle. Also available with creeper range, providing 20 speeds.

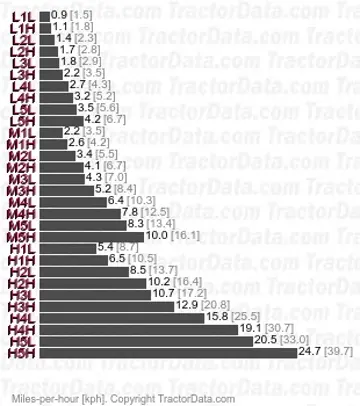

Transmission — 30 forward and reverse two-speed power shift

Type	two-speed power shift
Gears	30 forward and reverse
Clutch	wet disc
Five gears in three ranges with power shuttle and two-speed power shift in each gear. Also available with creeper range, providing 40 speeds.
With 14.9R28 rear tires. Reverse speeds are 3% slower than forward.

Dimensions

McCormick Intl F75 Tires
Ag front	7.50-16 (2WD)
	280/70R20 (4WD)
Ag rear	14.9R24

Dimensions
2WD Wheelbase	85.6 inches 217 cm
4WD Wheelbase	84 inches 213 cm
Length	146 inches 370 cm
Width	49 inches 124 cm
Height (ROPS)	90 inches 228 cm
Height (Folded ROPS)	55 inches 139 cm
Height (cab)	87 inches 220 cm
Ground clearance	13.8 inches 35 cm

McCormick Intl F75 Weight
2WD ROPS	5766 lbs 2615 kg
4WD ROPS	6273 lbs 2845 kg
2WD Cab	6206 lbs 2815 kg
4WD Cab	6714 lbs 3045 kg
