Minneapolis 17-30 B
The Minneapolis 17-30 B is a tractor produced by Minneapolis. It is equipped with a 522.6 ci 8.6 L engine. The rated power output is 34.76 hp 25.9 kW. Transmission: 2 forward and 1 reverse. Operating weight: 6800 lbs 3084 kg.
Engine Power
34.76 hp
25.9 kW
Fuel & Capacities
18 gal
68.1 L
Transmission
2 forward and 1 reverse
Operating Weight
6800 lbs
3084 kg
Minneapolis 17-30 B Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.

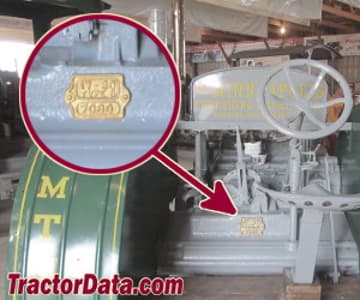

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1925 - 1929
Standard-tread tractor |
|---|---|
1925 - 1929 | |
Standard-tread tractor | |
Production | |
|---|---|
Manufacturer | Minneapolis (a part of Minneapolis Threshing Machine Company) |
Standard-tread tractor | |
Built in Hopkins, Minnesota, USA | |
Minneapolis 17-30 B Engine | |
|---|---|
Minneapolis Threshing Machine 8.6L 4-cyl kerosene | |
Fuel tank | 18 gal
68.1 L |
Aux. fuel | 6 gal
22.7 L |
Engine details ...  | |
Minneapolis 17-30 B Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Minneapolis 17-30 B Power | |
|---|---|
Drawbar (claimed) | 17 hp
12.7 kW |
Belt (claimed) | 30 hp
22.4 kW |
Plows | 4 (14-inch) |
Drawbar (tested) | 22.37 hp
16.7 kW |
Belt (tested) | 34.76 hp
25.9 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 90.75 inches
230 cm |
Weight | 6800 lbs
3084 kg |
Front tire | 36x5 |
Rear tire | 54x12 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 15.5 inches
39 cm |
Width | 7.5 inches
19 cm |
RPM | 825 |
References | |
|---|---|
 | |
1125 published in 1992, by Massey Ferguson | |
General Catalog No. 31 published in 1930, by Minneapolis-Moline |
Engine
Engine Detail — 522.6 ci / 8.6 L Kerosene
Manufacturer | Minneapolis Threshing Machine |
Fuel Type | Kerosene |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 522.6 ci
8.6 L |
Bore/Stroke | 4.875x7.00 inches
124 x 178 mm |
Rated RPM | 825 |
Starter type | hand crank |
Coolant capacity | 34 qts
32.2 L |
Transmission
Transmission — 2 forward and 1 reverse gear
Type | gear |
Gears | 2 forward and 1 reverse |
 | |
Dimensions
Minneapolis 17-30 B Tires | |
|---|---|
Ag front | 36x5 (steel) |
Ag rear | 54x12 (steel) |
Dimensions | |
|---|---|
Wheelbase | 90.75 inches
230 cm |
Length | 143 inches
363 cm |
Width | 76.5 inches
194 cm |
Height | 72 inches
182 cm |
Weight | 6800 lbs
3084 kg |
Rear axle | 2.9 inch diameter
73 mm |
Rear tread | 58.5 inches
148 cm |
Tests
Nebraska Tractor Test 118 | |
|---|---|
Kerosene 2-speed 2WD
October 21 - November 12, 1925
Link: Nebraska Tractor Test 118 file | |
Belt power (max) | 34.76 hp
25.9 kW |
Belt fuel use (max) | 5.2 gal/hour
19.7 l/hour |
Drawbar performance | |
Max power | 22.37 hp
16.7 kW |
Max pull | 4374 lbs
1984 kg |
Photos

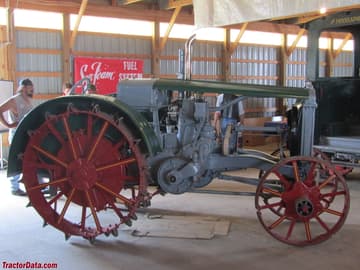

Minneapolis 17-30 B
Minneapolis 17-30 B
Minneapolis 17-30B operator station and controls.
