minneapolis moline g705

1962 - 1965

Standard-tread tractor

Standard-tread tractor

NTTL 835: diesel 5-speed 2WD

NTTL 836: LP gas 5-speed 2WD

Diesel 5-speed 2WD April 19 - 30, 1963 Link: Nebraska Tractor Test 835 file

PTO performance

Power at rated engine speed

101.01 hp 75.3 kW

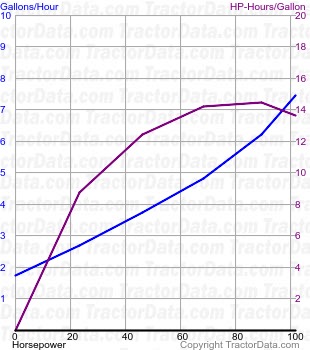

Fuel use

7.4 gal/hour 28.0 l/hour

Power at rated PTO speed

81.47 hp 60.8 kW

Fuel use

5.7 gal/hour 21.6 l/hour

Drawbar performance

Max power

90.80 hp 67.7 kW

Fuel use

7.4 gal/hour 28.0 l/hour

Gear 3 used for power test.

Max pull

11,345 lbs 5146 kg

Gear 1 used for pull test.

LP gas 5-speed 2WD April 24 - May 1, 1963 Link: Nebraska Tractor Test 836 file

PTO performance

Power at rated engine speed

101.05 hp 75.4 kW

Fuel use

11.5 gal/hour 43.5 l/hour

Power at rated PTO speed

82.12 hp 61.2 kW

Fuel use

9.0 gal/hour 34.1 l/hour

Drawbar performance

Max power

90.08 hp 67.2 kW

Fuel use

11.4 gal/hour 43.1 l/hour

Gear 3 used for power test.

Max pull

11,432 lbs 5185 kg

Gear 1 used for pull test.
