minneapolis moline gtc
 | 1951 - 1953
Standard-tread tractor | 1951 - 1953 | Standard-tread tractor |
|---|---|---|---|
1951 - 1953 | |||
Standard-tread tractor | |||
1951 - 1953 | |
|---|---|
Standard-tread tractor |
Production | |
|---|---|
Manufacturer | Minneapolis-Moline |
Standard-tread tractor | |
Built in Minneapolis, Minnesota, USA | |
Variants | |
|---|---|
GTB | gasoline |
GTC | LP-gas |
Minneapolis-Moline GTC Engine | |
|---|---|
Minneapolis-Moline 5.6L 4-cyl LP gas | |
Engine details ...  |

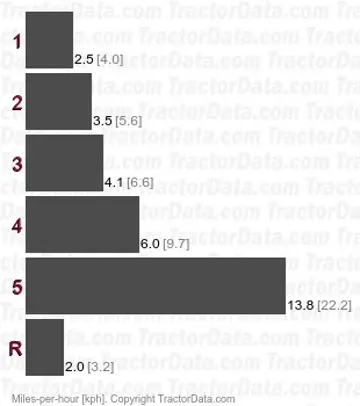

Minneapolis-Moline GTC Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Minneapolis-Moline GTC Power |
|---|
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |

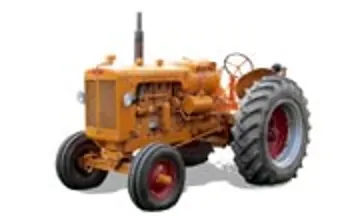

Photos | |
|---|---|
 | |
Minneapolis-Moline GTC photos...  |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 82.5 inches
209 cm |
Front tire | 7.50-18 |
Rear tire | 14-34 |
Full dimensions and tires ...  | |

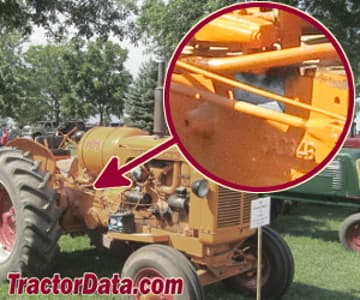

GTC Serial Number Location | |
|---|---|
 | |
Right side of tractor frame, just ahead of operator platform. |
GTC Serial Numbers | |
|---|---|
1951 | 04700001 |
1952 | 04700019 |
1953 | 04700677 |
Final | 04701101 |
FAQ: How to read a serial number table. | |
Belt Pulley | |
|---|---|
Diameter | 16 inches
40 cm |
Width | 7 inches
17 cm |
RPM | 627 |
Speed | 2,630 ft/min
801.62 meters/min |
