Mitsubishi MTX13

The Mitsubishi MTX13 is a tractor produced by Mitsubishi. It is equipped with a 42.5 ci 0.7 L engine. The listed engine power is Diesel (listed): 13 hp / 9.7 kW.

Engine Power

Diesel (listed): 13 hp / 9.7 kW

Fuel & Capacities

Diesel

Overview

	1989 - 1992 MTX SeriesCompact Utility tractor MTX Series Compact Utility tractor

Production
Manufacturer	Mitsubishi
Compact Utility tractor

Mitsubishi MTX13 Engine
0.7L 3-cyl diesel
Engine details ...

Mitsubishi MTX13 Power
Engine	13 hp 9.7 kW

Mechanical
Four-wheel drive

Dimensions & Tires
Full dimensions and tires ...

Engine

Engine Detail — 42.5 ci / 0.7 L Diesel

Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	42.5 ci 0.7 L
Power	13 hp 9.7 kW
Starter type	electric

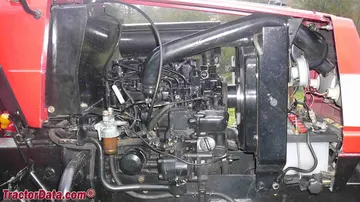

Mitsubishi MTX13 Engine

Image courtesy of Martin Jarabek

Transmission

Transmission

Dimensions

Mitsubishi MTX13 Tires

Dimensions

Photos

Mitsubishi MTX 13 with tiller.

Mitsubishi MTX 13.

Mitsubishi MTX 13, rear view.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Mitsubishi MTX13.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
