Montana T7074

The Montana T7074 is a tractor produced by Montana. It is equipped with a 179 ci 2.9 L engine. The listed engine power is Diesel (net): 68 hp / 50.7 kW; Diesel (gross): 70 hp / 52.2 kW. Transmission: 16 forward and reverse. Operating weight: 6660 lbs 3020 kg.

Engine Power
Diesel (net): 68 hp / 50.7 kW; Diesel (gross): 70 hp / 52.2 kW
Fuel & Capacities
26.4 gal 99.9 L
Transmission
16 forward and reverse
Operating Weight
6660 lbs 3020 kg

Overview

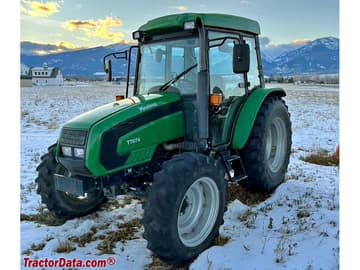

Montana T7074 tractor photo
2006 - 2009 Utility tractor
Production
Manufacturer
Montana
Utility tractor
Montana T7074 Engine
John Deere 2.9L 3-cyl diesel
Engine details ...
Montana T7074 Transmission
16-speed sync shuttle
Transmission details ...
Montana T7074 Power
Engine (gross)
70 hp 52.2 kW
Engine (net)
68 hp 50.7 kW
PTO (claimed)
60 hp 44.7 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard.
Capacity
Fuel
26.4 gal 99.9 L
Hydraulic system
11.9 gal 45.0 L
Hydraulics
Type
open center
Capacity
11.9 gal 45.0 L
Rear valves
3
Front valves
2
Pump flow
10.54 gpm 39.9 lpm
Total flow
15.67 gpm 59.3 lpm
Steering flow
5.13 gpm 19.4 lpm
Tractor hitch
Rear Type
II
Control
position and draft control
Rear lift (at ends)
4849 lbs 2199 kg
Rear lift (at 24"/610mm)
2901 lbs 1315 kg
Power Take-off (PTO)
Rear PTO
independent
Clutch
wet disc
Rear PTO Type
540/1000 (1.375)
Engine RPM
540@2396
1000@2347
Dimensions & Tires
Wheelbase
83.2 inches 211 cm
Weight
6660 lbs 3020 kg
Front tire
11.2-24
Rear tire
16.9-30
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
50
Battery volts
12

Engine

Engine Detail — 179 ci / 2.9 L Diesel

Manufacturer
John Deere 3029T
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
179 ci 2.9 L
Bore/Stroke
4.19x4.33 inches 106 x 110 mm
Power (net)
68 hp 50.7 kW
Power (gross)
70 hp 52.2 kW
Air cleaner
dual dry
Rated RPM
2500
Starter volts
12
Oil capacity
9 qts 8.5 L
Coolant capacity
9.7 qts 9.2 L

Transmission

Transmission — 16 forward and reverse sync shuttle

Type
sync shuttle
Gears
16 forward and reverse
Clutch
dry disc

Dimensions

Montana T7074 Tires
Ag front
11.2-24
Ag rear
16.9-30
Dimensions
Wheelbase
83.2 inches 211 cm
Length
159.4 inches 404 cm
Width
77.1 inches 195 cm
Height
102.3 inches 259 cm
Weight
6660 lbs 3020 kg
Ground clearance
17.7 inches 44 cm

Photos

Montana T7074

Montana T7074

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Montana T7074.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Montana T7074 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Montana T7074.

Converted Equivalents:

Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS

Direct Competitor Comparison

Compare Montana T7074 against same-era industry alternatives in the same horsepower class.

Current Model
Montana

Montana T7074

Engine Power:Diesel (net): 68 hp / 50.7 kW; Diesel (gross): 70 hp / 52.2 kW
★ Baseline Reference
Deutz-FahrMarket Competitor

Deutz-Fahr 4065E

Engine Power:61.2
Production Years:2018 - 2026
View Full Specs→
KubotaMarket Competitor

Kubota MX5800

Engine Power:61.4
Production Years:2015 - 2020
View Full Specs→
DeereMarket Competitor

Deere 1641

Engine Power:61.7
Production Years:1982 - 1987
View Full Specs→
Massey FergusonMarket Competitor

Massey Ferguson 373

Engine Power:62
Production Years:1987 - 1994
View Full Specs→
