Montgomery Ward Twin-Row

The Montgomery Ward Twin-Row is a tractor produced by Montgomery Ward. It is equipped with a 113.12 ci 1.9 L engine. Transmission: 3 forward and 1 reverse. Operating weight: 2105 lbs 954 kg.

Fuel & Capacities

12 gal 45.4 L

Transmission

3 forward and 1 reverse

Operating Weight

2105 lbs 954 kg

Overview

	1941 - 1942 Row-Crop tractorCleveland built Row-Crop tractor Cleveland built

Production
Distributor	Montgomery Ward
Manufacturer	Cleveland
Row-Crop tractor
Built in Cleveland, Ohio, USA
Original price was $650 in 1941

Variants
GG	similar Cletrac model

Montgomery Ward Twin-Row Engine
Hercules 1.9L 4-cyl gasoline
Fuel tank	12 gal 45.4 L
Engine details ...

Montgomery Ward Twin-Row Transmission
3-speed gear
Transmission details ...

Montgomery Ward Twin-Row Power
Belt (claimed)	18 hp 13.4 kW

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO Type	560

Dimensions & Tires
Wheelbase	80 inches 203 cm
Weight	2105 lbs 954 kg
Front tire	5.50-16
Rear tire	9-24
Full dimensions and tires ...

Belt Pulley
Diameter	9.5 inches 24 cm
Width	5.5 inches 13 cm
RPM	1065
Speed	2825 ft/min 861.06 meters/min

References

Fall & Winter Catalog published in 1941, by Montgomery Ward
Twin-Row published in 1941, by Montgomery Ward

Engine

Engine Detail — 113.12 ci / 1.9 L Gasoline

Manufacturer	Hercules IXA3
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled
Displacement	113.12 ci 1.9 L
Bore/Stroke	3.00x4.00 inches 76 x 102 mm
Air cleaner	oil bath
Compression	5.75:1
Rated RPM	1400 (drawbar)
	1700 (belt)
Starter type	manual start
Oil capacity	5 qts 4.7 L
Coolant capacity	12 qts 11.4 L

Transmission

Transmission — 3 forward and 1 reverse gear

Type	gear
Gears	3 forward and 1 reverse
Clutch	9-inch dry plate
Oil capacity	10 qts 9.5 L

Dimensions

Montgomery Ward Twin-Row Tires
Ag front	5.50-16
Ag rear	9-24

Dimensions
Wheelbase	80 inches 203 cm
Length	118 inches 299 cm
Height (hood)	55 inches 139 cm
Shipping weight	2105 lbs 954 kg
Ballasted weight	3115 lbs 1412 kg

Photos

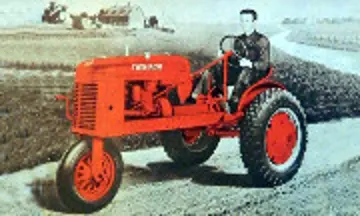

Montgomery Ward Twin-Row

Wards Twin-Row operator station and controls.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Montgomery Ward Twin-Row.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
