MTD 698
The MTD 698 is a tractor produced by Mtd Lawn Tractors. The listed engine power is Gasoline (gross): 11 hp / 8.2 kW. Transmission: Peerless 813.
Engine Power
Gasoline (gross): 11 hp / 8.2 kW
Fuel & Capacities
1 gal
3.8 L
Transmission
Peerless 813
Overview
 | 1982 - 1986
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | MTD |
Lawn tractor | |
MTD 698 Engine | |
|---|---|
11HP 1-cyl gasoline | |
Fuel tank | 1 gal
3.8 L |
Engine details ...  | |
MTD 698 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual idler pulley |
Dimensions & Tires | |
|---|---|
Front tire | 15x6.00 |
Rear tire | 18x8.50 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Owner's Manual Model Number 132-698A (770-1770) published in 1982 | |
Lawn & Garden Tractor Accessories published in 1984, by MTD | |
MTD Parts Microfiche (770-2200) published in 1982 | |
Parts and Service Information Manual (770-1737) published in 1982 |
Engine
Engine Detail — Gasoline
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Power (gross) | 11 hp
8.2 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Peerless 813
Transmission | Peerless 813 |
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
Dimensions
MTD 698 Tires | |
|---|---|
Lawn/turf front | 15x6.00 |
Lawn/turf rear | 18x8.50 |
Dimensions |
|---|
Attachments
38" Mower deck | |
|---|---|
Type | mid-mount MTD |
2-blade with manual lift | |
Cutting width | 38 inches
96 cm |
Photos

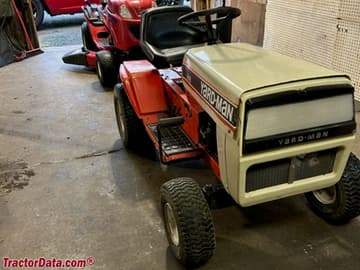

Yard-Man (MTD) 698 lawn tractor.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Mtd Lawn Tractors MTD 698.
Estimated Continuous Field Runtime: 1.7 hrs
Approximately 1.7 hours of continuous field operation at ~75% rated power on a full tank (1 gal / 3.8 L).
Estimated 75% Load Fuel Burn~0.6 gal/hr (2.2 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Mtd Lawn Tractors MTD 698 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Mtd Lawn Tractors MTD 698.
Converted Equivalents:
Horsepower (HP)11 hp
Kilowatts (kW)8.2 kW
Metric Horsepower (PS / CV)11.2 PS
