mtd lawn tractors 720
 | 1980
Lawn tractor | 1980 | Lawn tractor |
|---|---|---|---|
1980 | |||
Lawn tractor | |||
1980 | |
|---|---|
Lawn tractor |
Production | |
|---|---|
Manufacturer | MTD |
Lawn tractor | |
Variants | |
|---|---|
LGT-1100 | similar White model |
MTD 720 Engine | |
|---|---|
11HP Briggs & Stratton 399cc 1-cyl gasoline | |
Engine details ...  |
MTD 720 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual idler pulley |
Dimensions & Tires | |
|---|---|
Front tire | 15x6.00 |
Rear tire | 18x9.50 |
Full dimensions and tires ...  | |
MTD 720 attachments | |
|---|---|
38" mid-mount mower deck | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |

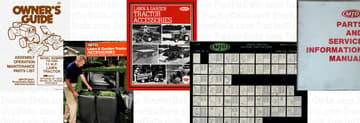

References | |
|---|---|
 | |
Owner's Guide 130-720A (770-0317) published in 1980 | |
Lawn & Garden Tractor Accessories published in 1980, by MTD | |
Lawn & Garden Tractor Accessories published in 1984, by MTD | |
MTD Parts Microfiche (770-0273) published in 1980 | |
Parts and Service Information Manual (770-1737) published in 1982 |
