TractorData Logo
TractorData

MTD 990 Fourteen Hundred

The MTD 990 Fourteen Hundred is a tractor produced by Mtd Lawn Tractors. It is equipped with a 531 cc 32.4 ci engine. The listed engine power is Gasoline (listed): 14 hp / 10.4 kW. Transmission: Eaton. Operating weight: 147 lbs 66 kg.

Engine Power
Gasoline (listed): 14 hp / 10.4 kW
Fuel & Capacities
4.5 gal 17.0 L
Transmission
Eaton
Operating Weight
147 lbs 66 kg

Overview

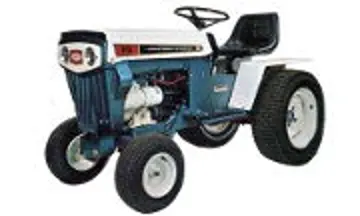

MTD 990 Fourteen Hundred tractor photo
1971 - 1984 Model year 197119721973-1984 900 SeriesGarden tractor 900 Series Garden tractor
Production
Manufacturer
MTD
Garden tractor
Built in Strongsville, Ohio, USA
Original price was $1,199 in 1971
Variants
960
gear
990
hydrostatic
MTD 990 Engine
14HP Briggs & Stratton 531cc 1-cyl gasoline
Fuel tank
4.5 gal 17.0 L
Engine details ...
MTD 990 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Tractor hitch
Type
sleeve hitch
Power Take-off (PTO)
Mid PTO
independent
Clutch
manual
Dimensions & Tires
Wheelbase
49.5 inches 125 cm
Weight
875 lbs 396 kg
Front tire
16x6.50-8
Rear tire
27x9.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
990 Fourteen Hundred references literature
Owner's Guide 141-990 (770-3136) published in 1971
Riding Mower and Tractor Attachments published in 1971, by MTD
Parts and Service Information Manual (770-1737) published in 1982
Compact Tractors published in 1971, by MTD*
*Publication contains known errors.

Engine

Engine Detail — 531 cc / 32.4 ci Gasoline

Manufacturer
Briggs & Stratton 320000
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled horizontal-shaft
Displacement
531 cc 32.4 ci
Bore/Stroke
3.56x3.25 inches 90 x 83 mm
Power
14 hp 10.4 kW
Starter
electric
Starter volts
12
MTD 990 Engine

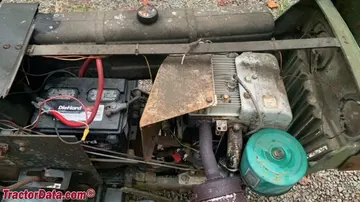

MTD 990 engine image
Image courtesy of Mark Ridley

Transmission

Transmission — Eaton

Transmission
Eaton
Type
shaft-driven hydrostatic
Gears
infinite forward and reverse (2-range)

Dimensions

MTD 990 Tires
Lawn/turf front
16x6.50-8
Lawn/turf rear
27x9.50-12
Dimensions
Wheelbase
49.5 inches 125 cm
Shipping weight
875 lbs 396 kg
Front tread
28 inches 71 cm
Rear tread
30 to 35 inches 76 to 88 cm

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.
42" Mower deck
Type
mid-mount MTD 761
3-blade with manual lift
Cutting width
42 inches 106 cm
Weight
147 lbs 66 kg

Photos

MTD 990 Fourteen Hundred

MTD 990 Fourteen Hundred

MTD 990 Fourteen Hundred

MTD 990 Fourteen Hundred

MTD 990 Fourteen Hundred

MTD 990 Fourteen Hundred

MTD 990 Fourteen Hundred

MTD 990 Fourteen Hundred

MTD 990 Fourteen Hundred

MTD 990 Fourteen Hundred

MTD 990 operator station and controls.

MTD 990 operator station and controls.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Mtd Lawn Tractors MTD 990 Fourteen Hundred.

Estimated Continuous Field Runtime: 6.2 hrs

Approximately 6.2 hours of continuous field operation at ~75% rated power on a full tank (4.5 gal / 17 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Mtd Lawn Tractors MTD 990 Fourteen Hundred Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Mtd Lawn Tractors MTD 990 Fourteen Hundred.

Converted Equivalents:

Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
