Murray 38616

The Murray 38616 is a tractor produced by Murray Lawn Tractors. It is equipped with a 357 cc 21.82 ci engine. The listed engine power is Gasoline (gross): 12 hp / 8.9 kW. Transmission: Foote 4360.

Overview

	1992 Lawn tractor
1992
Lawn tractor

Production
Manufacturer	Murray
Lawn tractor
Built in Lawrenceburg, Tennessee, USA
Original price was $788 in 1992

Murray 38616 Engine
12HP Tecumseh 357cc 1-cyl gasoline
Fuel tank	1 gal 3.8 L
Engine details ...

Murray 38616 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Front tire	15x6
Rear tire	18x9.5
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 357 cc / 21.82 ci Gasoline

Manufacturer	Tecumseh OVXL120
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	357 cc 21.82 ci
Bore/Stroke	3.31x2.53 inches 84 x 64 mm
Power (gross)	12 hp 8.9 kW
Starter	electric
Starter volts	12

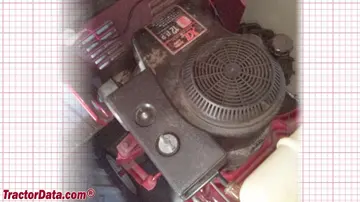

Murray 38616 Engine
Image courtesy of Eric Latko

Transmission

Transmission — Foote 4360

Transmission	Foote 4360
Type	belt-driven gear
Gears	3 forward and 1 reverse

Dimensions

Murray 38616 Tires
Lawn/turf front	15x6
Lawn/turf rear	18x9.5

Dimensions

Attachments

38" Mower deck
Type	mid-mount Murray
	manual lift
Cutting width	38 inches 96 cm

Photos

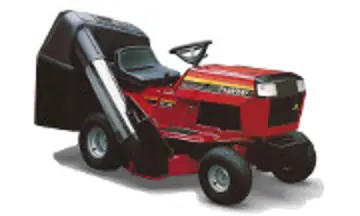

Murray 38616
