Murray 38617

The Murray 38617 is a tractor produced by Murray Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (gross): 12 hp / 8.9 kW. Transmission: Foote 4360.

Engine Power
Gasoline (gross): 12 hp / 8.9 kW
Fuel & Capacities
1 gal 3.8 L
Transmission
Foote 4360

Overview

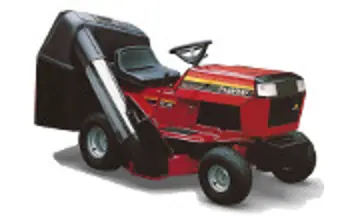

Murray 38617 tractor photo
1992 Lawn tractor
Production
Manufacturer
Murray
Lawn tractor
Built in Lawrenceburg, Tennessee, USA
Murray 38617 Engine
12HP Brigss & Stratton 465cc 1-cyl gasoline
Fuel tank
1 gal 3.8 L
Engine details ...
Murray 38617 Transmission
3-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
manual
Dimensions & Tires
Front tire
15x6
Rear tire
18x9.5
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — 465 cc / 28.4 ci Gasoline

Manufacturer
Brigss & Stratton 280707
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Displacement
465 cc 28.4 ci
Bore/Stroke
3.44x3.06 inches 87 x 78 mm
Power (gross)
12 hp 8.9 kW
Starter
electric
Starter volts
12

Transmission

Transmission — Foote 4360

Transmission
Foote 4360
Type
belt-driven gear
Gears
3 forward and 1 reverse

Dimensions

Murray 38617 Tires
Lawn/turf front
15x6
Lawn/turf rear
18x9.5
Dimensions

Attachments

38" Mower deck
Type
mid-mount Murray
manual lift
Cutting width
38 inches 96 cm

Photos

Murray 38617 tractor photo

Murray 38617 tractor photo

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Murray Lawn Tractors Murray 38617.

Estimated Continuous Field Runtime: 1.6 hrs

Approximately 1.6 hours of continuous field operation at ~75% rated power on a full tank (1 gal / 3.8 L).

Estimated 75% Load Fuel Burn~0.6 gal/hr (2.4 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Murray Lawn Tractors Murray 38617 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Murray Lawn Tractors Murray 38617.

Converted Equivalents:

Horsepower (HP)12 hp
Kilowatts (kW)8.9 kW
Metric Horsepower (PS / CV)12.2 PS
