Murray MT100

The Murray MT100 is a tractor produced by Murray Lawn Tractors. It is equipped with a 499 cc 30.5 ci engine. The listed engine power is Gasoline (gross): 13.5 hp / 10.1 kW. Transmission: Ningbo Daye. Drive type: belt. Operating weight: 375 lbs 170 kg.

Engine Power
Gasoline (gross): 13.5 hp / 10.1 kW
Drive & Traction
belt
Fuel & Capacities
1.4 gal 5.3 L
Transmission
Ningbo Daye
Operating Weight
375 lbs 170 kg

Overview

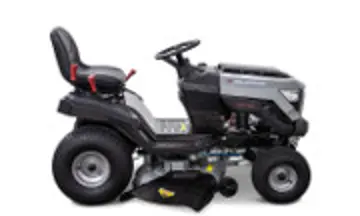

Murray MT100 tractor photo
2022 - Lawn tractorNingbo Daye built
2022 -
Lawn tractor
Ningbo Daye built
2022 -
Lawn tractor
Ningbo Daye built
Production
Distributor
Murray (a part of Briggs & Stratton)
Manufacturer
Ningbo Daye
Lawn tractor
Built in China
Original price was $1,999 in 2023
Murray MT100 Engine
13.5HP Briggs & Stratton 499cc 1-cyl gasoline
Fuel tank
1.4 gal 5.3 L
Engine details ...
Murray MT100 Transmission
6-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
manual
Dimensions & Tires
Weight
375 lbs 170 kg
Front tire
15x6.00-6
Rear tire
20x8.00-8
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
9
Battery CCA
230
Battery volts
12
Battery Group
U1
References
MT100 references literature
Operator's Manual MT100 Lawn Tractor published in 2022

Engine

Murray MT100 tractor photo
2022 - Lawn tractorNingbo Daye built
2022 -
Lawn tractor
Ningbo Daye built
2022 -
Lawn tractor
Ningbo Daye built

Engine Detail — 499 cc / 30.5 ci Gasoline

Manufacturer
Briggs & Stratton E1350
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Displacement
499 cc 30.5 ci
Bore/Stroke
3.56x3.06 inches 90 x 78 mm
Power (gross)
13.5 hp 10.1 kW
Air cleaner
dry
Starter
electric
Starter volts
12
Oil capacity
1.5 qts 1.4 L
Oil change
50 h
Sparkplug gap
0.030 inches 0.762 mm
Murray MT100 Engine

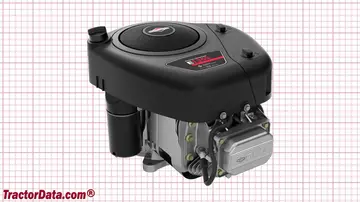

Murray MT100 engine image

Transmission

Murray MT100 tractor photo
2022 - Lawn tractorNingbo Daye built
2022 -
Lawn tractor
Ningbo Daye built
2022 -
Lawn tractor
Ningbo Daye built

Transmission — Ningbo Daye

Transmission
Ningbo Daye
Type
belt-driven gear
Gears
6 forward and 1 reverse
MT100  belt-driven gear speeds

Dimensions

Murray MT100 tractor photo
2022 - Lawn tractorNingbo Daye built
2022 -
Lawn tractor
Ningbo Daye built
2022 -
Lawn tractor
Ningbo Daye built
Murray MT100 Tires
Lawn/turf front
15x6.00-6
Lawn/turf rear
20x8.00-8
Dimensions
Length
64.6 inches 164 cm
Height
41.5 inches 105 cm
Weight
375 lbs 170 kg

Attachments

Murray MT100 tractor photo
2022 - Lawn tractorNingbo Daye built
2022 -
Lawn tractor
Ningbo Daye built
2022 -
Lawn tractor
Ningbo Daye built
42" Mower deck
Type
mid-mount Murray
2-blade with manual lift
Cutting width
42 inches 106 cm
Drive
belt
Overall width
52.6 inches 133 cm
Cut height
1 to 4 inch 2 to 10 cm
Cut positions
13

Photos

Murray MT100

Murray MT100

Murray MT100

Murray MT100

Murray MT100

Murray MT100

Murray MT100 operator station and controls.

Murray MT100 operator station and controls.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Murray Lawn Tractors Murray MT100.

Estimated Continuous Field Runtime: 2 hrs

Approximately 2 hours of continuous field operation at ~75% rated power on a full tank (1.4 gal / 5.3 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Murray Lawn Tractors Murray MT100 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Murray Lawn Tractors Murray MT100.

Converted Equivalents:

Horsepower (HP)13.5 hp
Kilowatts (kW)10.1 kW
Metric Horsepower (PS / CV)13.7 PS
