New Holland 4835

The New Holland 4835 is a tractor produced by New Holland. It is equipped with a 220 ci 3.6 L engine. The rated power output is 65 hp 48.5 kW. Transmission: Dual Command. Operating weight: 5954 to 7056 pounds.

Overview

	1996 - 1999 35 SeriesUtility tractor
1996 - 1999
35 Series
Utility tractor

Production
Manufacturer	New Holland
Utility tractor
Built in Italy
Original price was $26,750 in 1999

New Holland 4835 Engine
Iveco 3.6L 4-cyl diesel
Fuel tank	29 gal 109.8 L
Engine details ...

New Holland 4835 Power
Engine	65 hp 48.5 kW
PTO (claimed)	56 hp 41.8 kW

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post foldable ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
Valves	2 to 3
Pump flow	14.5 gpm 54.9 lpm

Tractor hitch
Rear Type	II
Control	mechanical lower-link draft sensing
Rear lift (at 24"/610mm)	5722 lbs 2595 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540

Dimensions & Tires
2WD Wheelbase	92.2 inches 234 cm
4WD Wheelbase	91.1 inches 231 cm
Weight	5954 to 7056 pounds
Front tire	7.50-16.6
Rear tire	16.9-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	45
Cab Charging amps	65
Battery volts	12

References
56 to 86 PTO hp Tractors published in 1996, by New Holland
35 Series Tractors published in 1996, by New Holland
North American Buyer's Guide published in 1997, by New Holland

Engine

Engine Detail — 220 ci / 3.6 L Diesel

Manufacturer	Iveco 8045.06
Fuel Type	Diesel
Configuration	4-cylinder 8-valve, liquid-cooled
Displacement	220 ci 3.6 L
Bore/Stroke	3.937x4.527 inches 100 x 115 mm
Power	65 hp 48.5 kW
Pre-heating	Thermostart
Rated RPM	2500
Torque	48.6 lb-ft 65.9 Nm
Torque RPM	1500
Starter volts	12
Oil capacity	12.4 qts 11.7 L
Coolant capacity	14.8 qts (ROPS) 14.0 L
	16.9 qts (cab) 16.0 L

Transmission

Transmission options
12-speed partially synchronized
12-speed partiallly synchronized with sync shuttle
24-speed partial power shift

Transmission — Synchro

Transmission	Synchro
Type	partially synchronized
Gears	12 forward and 4 reverse
Four gears in three ranges, plus reverse. Gear shifts are synchronized.

Transmission — Synchro Command

Transmission	Synchro Command
Type	partiallly synchronized with sync shuttle
Gears	12 forward and reverse
Four gears in three ranges with left-hand reverser. Gear and shuttle shifts are synchronized.

Transmission — Dual Command

Transmission	Dual Command
Type	partial power shift
Gears	24 forward and 12 reverse
Four gears in three ranges with two-speed power shift and left-hand reverser. The Dual Command provides push-button shifting to lower gear at each speed.

Dimensions

New Holland 4835 Tires
Ag front	7.50-16.6
Ag rear	16.9-30

Dimensions
2WD Wheelbase	92.2 inches 234 cm
4WD Wheelbase	91.1 inches 231 cm
Width	72.6 inches 184 cm
2WD ROPS Shipping weight	5954 lbs 2700 kg
4WD Cab Shipping weight	7056 lbs 3200 kg
Front tread	56 to 84 inches 142 to 213 cm
Rear tread	60 to 84 inches 152 to 213 cm

New Holland 4835 Height
ROPS	105.5 inches 267 cm
	84 inches (folded) 213 cm
Cab	97.5 inches 247 cm

Photos

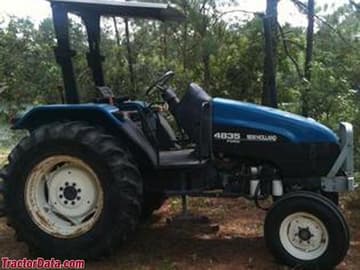

New Holland 4835 with ROPS and two-wheel drive.

New Holland 4835 with ROPS and two-wheel drive.
