New Holland 5030
The New Holland 5030 is a tractor produced by New Holland. It is equipped with a 255 ci 4.2 L engine. The listed engine power is 63.56 hp 47.4 kW. Transmission: Dual Power. Operating weight: 5547 to 6415 pounds.
Engine Power
63.56 hp
47.4 kW
Fuel & Capacities
17.3 gal
65.5 L
Transmission
Dual Power
Operating Weight
5547 to 6415 pounds
Overview
 | 1992 - 1998
30 SeriesUtility tractor
30 Series
Utility tractor |
|---|
Series map: 4630503060.0hp68.9hp**Estimated engine power for comparison only.
Note: the New Holland model 5030 is the same as the Ford 5030. The following data is from the 5030 listing. |
Production | |
|---|---|
Manufacturer | New Holland |
Utility tractor | |
Built in Basildon, England | |
Original price was $25,500 in 1998 | |
New Holland 5030 Engine | |
|---|---|
Ford 4.2L 4-cyl diesel | |
Engine details ...  |
New Holland 5030 Power | |
|---|---|
PTO (claimed) | 62 hp
46.2 kW |
Drawbar (tested) | 53.84 hp
40.1 kW |
PTO (tested) | 63.56 hp
47.4 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Differential wet disc brakes | |
Two-post ROPS. Cab optional. | |
Capacity | |
|---|---|
ROPS Fuel | 17.3 gal
65.5 L |
Cab Fuel | 25.3 gal
95.8 L |
Hydraulic system | 12.7 gal
48.1 L |
Hydraulics | |
|---|---|
Type | open center |
closed center OptOptional | |
Capacity | 12.7 gal
48.1 L |
Valves | 2 to 4 |
Pump flow | 8 gpm
30.3 lpm |
14.4 gpmOptOptional
54.5 lpm | |
Steering flow | 3.6 gpm
13.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | top-link draft sensing |
Rear lift | 3080 lbs
1397 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@1800 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 89.6 inches
227 cm |
4WD Wheelbase | 89.2 inches
226 cm |
Weight | 5547 to 6415 pounds |
Front tire | 7.50-16 |
Rear tire | 13.6-36 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
ROPS Charging amps | 55 (early) |
ROPS Charging amps | 45 (late) |
Cab Charging amps | 70 |
Battery CCA | 800 |
Battery volts | 12 |
References | |
|---|---|
 | |
Ford 30 Series published in 1995, by New Holland | |
30 Series Utility Tractors published in 1997, by New Holland |
Engine
Series map: 4630503060.0hp68.9hp**Estimated engine power for comparison only.
Note: the New Holland model 5030 is the same as the Ford 5030. The following data is from the 5030 listing. |
Engine Detail — 255 ci / 4.2 L Diesel
Manufacturer | Ford |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 255 ci
4.2 L |
Bore/Stroke | 4.4x4.2 inches
112 x 107 mm |
Air cleaner | dual paper elements |
Compression | 16.3:1 |
Rated RPM | 2200 |
Starter volts | 12 |
Coolant capacity | 13.2 qts
12.5 L |
Transmission
Series map: 4630503060.0hp68.9hp**Estimated engine power for comparison only.
Note: the New Holland model 5030 is the same as the Ford 5030. The following data is from the 5030 listing. |
Transmission options | |
|---|---|
8-speed gear | |
8-speed mechanical shuttle | |
16-speed two-speed power shift |
Transmission — 8 forward and 2 reverse gear
Type | gear |
Gears | 8 forward and 2 reverse |
Transmission — 8 forward and reverse mechanical shuttle
Type | mechanical shuttle |
Gears | 8 forward and reverse |
Four gears in two ranges with left-hand shuttle. | |

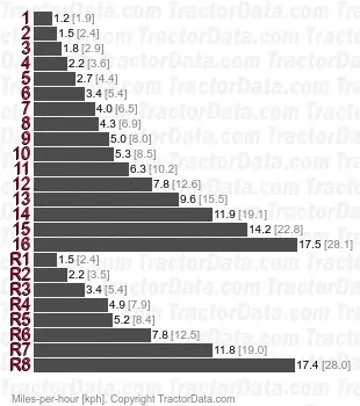

Transmission — Dual Power
Transmission | Dual Power |
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
 | |
Dimensions
Series map: 4630503060.0hp68.9hp**Estimated engine power for comparison only.
Note: the New Holland model 5030 is the same as the Ford 5030. The following data is from the 5030 listing. |
New Holland 5030 Tires | |
|---|---|
Ag front | 7.50-16 |
Ag rear | 13.6-36 |
Dimensions | |
|---|---|
2WD Wheelbase | 89.6 inches
227 cm |
4WD Wheelbase | 89.2 inches
226 cm |
2WD Length | 143.7 inches
364 cm |
4WD Length | 150.3 inches
381 cm |
Width | 69.5 inches*Minimum width across fenders.
176 cm |
Ground clearance | 18.7 inches
47 cm |
New Holland 5030 Weight | |
|---|---|
2WD ROPS Shipping | 5547 lbs
2516 kg |
4WD ROPS Shipping | 6415 lbs
2909 kg |
Operating | 5988 lbs (4WD ROPS)
2716 kg |
Ballasted | 8250 lbs
3742 kg |
New Holland 5030 Height | |
|---|---|
ROPS | 99.2 inches
251 cm |
Cab | 99 inches
251 cm |
Exhaust | 101.7 inches
258 cm |
Tests
Series map: 4630503060.0hp68.9hp**Estimated engine power for comparison only.
Note: the New Holland model 5030 is the same as the Ford 5030. The following data is from the 5030 listing. |
OCED Tractor Test 1704 | |
|---|---|
Diesel 16-speed 4WD
October 4 - 25, 1995
Link: OCED Tractor Test 1704 file | |
PTO performance | |
Power at rated engine speed | 63.56 hp
47.4 kW |
Fuel use | 4.2 gal/hour
15.9 l/hour |
Power at rated PTO speed | 56.17 hp
41.9 kW |
Fuel use | 3.6 gal/hour
13.6 l/hour |
Drawbar performance | |
Max power | 53.84 hp
40.1 kW |
Fuel use | 4.2 gal/hour
15.9 l/hour |
Gear 6L used for power test. | |
Max pull | 7,762 lbs
3520 kg |
Gear 3L used for pull test. | |
Attachments
Series map: 4630503060.0hp68.9hp**Estimated engine power for comparison only.
Note: the New Holland model 5030 is the same as the Ford 5030. The following data is from the 5030 listing. |
Photos

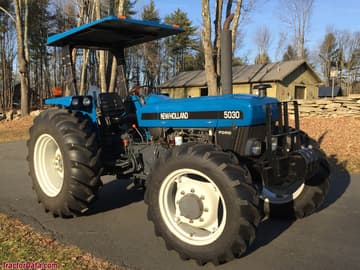

1997 New Holland-Ford model 5030 tractor with four-wheel drive.
Recommended Implements & Sizing Guide
Engineering recommendations for New Holland 5030 based on its 63.56 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland 5030.
Estimated Continuous Field Runtime: 5.2 hrs
Approximately 5.2 hours of continuous field operation at ~75% rated power on a full tank (17.3 gal / 65.5 L).
Estimated 75% Load Fuel Burn~3.3 gal/hr (12.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
New Holland 5030 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for New Holland 5030.
Converted Equivalents:
Horsepower (HP)63.6 hp
Kilowatts (kW)47.4 kW
Metric Horsepower (PS / CV)64.4 PS
