new holland 8870a
 | 2001 - 2003
70A SeriesRow-Crop tractor | 2001 - 2003 | 70A Series | Row-Crop tractor |
|---|---|---|---|---|
2001 - 2003 | ||||
70A Series | ||||
Row-Crop tractor | ||||
2001 - 2003 | |
|---|---|
70A Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | New Holland |
Row-Crop tractor | |
New Holland 8870A Engine | |
|---|---|
New Holland 7.5L 6-cyl diesel | |
Engine details ...  |
New Holland 8870A Transmission | |
|---|---|

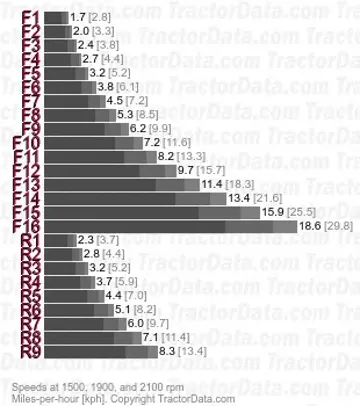

16-speed full power shift | |
Transmission details ...  |
New Holland 8870A Power | |
|---|---|
PTO (claimed) | 180 hp
134.2 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | electro-hydraulic |
Power steering | |
Cab standard with air-conditioning. | |
Capacity | |
|---|---|
Fuel | 110 gal
416.4 L |
Hydraulic system | 37 gal
140.0 L |
Hydraulics | |
|---|---|
Type | closed center load-sensing |
Capacity | 37 gal
140.0 L |
Pressure | 3000 psi
206.8 bar |
Valves | 3 or 4 |
Pump flow | 31 gpm
117.3 lpm |
| 55 gpmOptOptional
208.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | III |
Control | electronic draft sensing |
Rear lift | 14811 lbs
6718 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | wet disc |
Rear PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 118.3 inches
300 cm |
4WD Wheelbase | 118.3 inches
300 cm |
SuperSteer Wheelbase | 122.6 inches
311 cm |
Weight | 17250 to 19590 pounds |
Full dimensions and tires ...  | |
New Holland 8870A attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 130 |
Batteries | 2 |
Battery CCA | 850 |
Battery volts | 12 |
References | |
|---|---|
 | |
New Holland 70A 145 to 210 PTO hp Tractors published in 2001 |
