New Holland 9184

The New Holland 9184 is a tractor produced by New Holland. It is equipped with a 505 ci 8.3 L engine. The rated power output is 240 hp 179.0 kW. Transmission: Quadrasync. Operating weight: 17122 to 24970 pounds.

Overview

	2000 - 2001 84 SeriesFour-wheel Drive (4WD) tractorVersatile built
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

Production
Distributor	New Holland
Manufacturer	Versatile
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada

New Holland 9184 Engine
Cummins 8.3L 6-cyl diesel
Engine details ...

New Holland 9184 Transmission
12-speed partially synchronized
Transmission details ...

New Holland 9184 Power
Engine (gross)	240 hp 179.0 kW
Drawbar (tested)	200.6 hp 149.6 kW
PTO (tested)	233.6 hp 174.2 kW
Performance test details ...

Mechanical
Four-wheel drive
Final drives	planetary
Articulated power steering
Hydraulic disc brakes
Cab standard with air-conditioning.

Capacity
Fuel	230 gal 870.6 L
Hydraulic system	20 gal (reservoir) 75.7 L
	33 gal (total system) 124.9 L

Hydraulics
Type	closed center
Capacity	20 gal (reservoir) 75.7 L
	33 gal (total system) 124.9 L
Pressure	2250 psi 155.1 bar
Valves	4
Pump flow	45 gpm 170.3 lpm
Steering flow	27 gpm 102.2 lpm
Steering press.	2500 psi 172.4 bar

Tractor hitch
Rear Type	IVN/III
Rear lift (at 24"/610mm)	13000 lbs 5896 kg
Drawbar	Cat. 4

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	1000 (1.75)
Engine RPM	1000@2100

Dimensions & Tires
Wheelbase	133 inches 337 cm
Weight	17122 to 24970 pounds
Front tire	18.4-38
Rear tire	18.4-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	130
Batteries	3
Battery CCA	625
Battery volts	12

References
84 Series 4WD Tractors published in 1999, by New Holland
Operator's Manual 9184 - 9384 - 9484 - 9684 - 9884 (86584305) published in 1999

Engine

	2000 - 2001 84 SeriesFour-wheel Drive (4WD) tractorVersatile built
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

Engine Detail — 505 ci / 8.3 L Diesel

Manufacturer	Cummins C8.3
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	505 ci 8.3 L
Bore/Stroke	4.488x5.315 inches 114 x 135 mm
Power (gross)	240 hp 179.0 kW
Air cleaner	dual paper elements
Compression	16.5:1
Rated RPM	2100
Idle RPM	950-2500
Torque	825 lb-ft 1118.7 Nm
Torque RPM	1500
Firing order	1-5-3-6-2-4
Starter volts	12
Oil capacity	22.9 qts 21.7 L
Coolant capacity	55 qts 52.1 L

Transmission

	2000 - 2001 84 SeriesFour-wheel Drive (4WD) tractorVersatile built
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

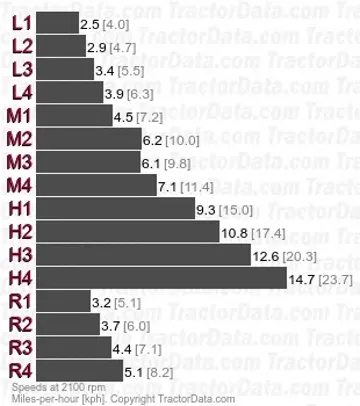

Transmission — Quadrasync

Transmission	Quadrasync
Type	partially synchronized
Gears	12 forward and 4 reverse
Clutch	hydraulic wet disc
Four synchronized gears in three ranges, plus reverse range. Gears may be shifted on the move, using the clutch. Tractor must be stopped, and clutch used, to shift range.
With 18.4-38 tires.

Dimensions

	2000 - 2001 84 SeriesFour-wheel Drive (4WD) tractorVersatile built
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

New Holland 9184 Tires
Ag front	18.4-38
Ag rear	18.4-38

Dimensions
Wheelbase	133 inches 337 cm
Length	266 inches 675 cm
Width	144.6 inches*Outer width of 18.4-38 duals. 367 cm
Height (cab)	134.5 inches 341 cm
Height (exhaust)	144.1 inches 366 cm

New Holland 9184 Weight
Shipping	17122 lbs 7766 kg
Operating	24970 lbs 11326 kg
Max capacity	29000 lbs 13154 kg

Tests

	2000 - 2001 84 SeriesFour-wheel Drive (4WD) tractorVersatile built
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

OCED Tractor Test 1885
Diesel 12-speed 4WD January 1 - September 1, 1999 Link: OCED Tractor Test 1885 file
PTO performance
Max power	233.6 hp 174.2 kW
Fuel use	14.7 gal/hour 55.6 l/hour
Power at rated engine speed	211.8 hp 157.9 kW
Fuel use	14.6 gal/hour 55.3 l/hour
Power at rated PTO speed	229.0 hp 170.8 kW
Fuel use	15.1 gal/hour 57.2 l/hour
Drawbar performance
Max power	200.6 hp 149.6 kW
Fuel use	14.6 gal/hour 55.3 l/hour
Max pull	25020 lbs 11349 kg

Photos

New Holland 9184 tractor photo
