New Holland T8.320

The New Holland T8.320 is a tractor produced by New Holland. It is equipped with a 531 ci 8.7 L engine. The rated power output is 250 hp 186.4 kW. Transmission: Auto Command. Operating weight: 22200 lbs 10069 kg.

Overview

	2015 - T8 SeriesRow-Crop tractor
2015 -
T8 Series
Row-Crop tractor

Production
Manufacturer	New Holland (a part of CNH)
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price was $261,389 in 2016 with powershift

Variants
Magnum 250	similar CaseIH model

New Holland T8.320 Engine
FPT 8.7L 6-cyl diesel
CVT Fuel tank	163 gal 617.0 L
FPS Fuel tank	179 gal 677.5 L
Exhaust fluid (DEF)	26 gal 98.4 L
Engine details ...

New Holland T8.320 Power
Engine (gross)	250 hp 186.4 kW
Engine (max)	320 hp 238.6 kW
PTO (claimed)	205 hp 152.9 kW
Drawbar (tested)	183.85 hp 137.1 kW
PTO (tested)	261.49 hp 195.0 kW
Performance test details ...

Mechanical
Four-wheel drive
Final drives	inboard planetary
Power steering
Wet disc brakes
Cab standard with air-conditioning. Comfort Ride cab suspension optional. Intellisteer ready

Hydraulics
Type	closed center pressure-flow compensating (PFC)
Valves	4 to 5
Pump flow	44 gpm 166.5 lpm
	75 gpm*Optional, MegaFlow rate. 283.9 lpm

Tractor hitch
Rear Type	III/IIIN
Control	electronic lower-link draft sensing
Rear lift	12900 lbs*With 4-inch rear axle and 43-inch link arms. 5851 kg
	14900 lbs*With 4-inch rear axle and 38-inch link arms. 6758 kg
	15900 lbs*With 4.5-inch rear axle and 43-inch link arms. 7212 kg
	17900 lbs*With 4.5-inch rear axle and 38-inch link arms. 8119 kg
Drawbar	Cat. 3
	Cat. 4 OptOptional

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (1.75)
	540/1000 (1.375)OptOptional
Engine RPM	540@1800
	1000@1800
Front PTO	independent OptOptional
Front PTO Type	1000 (1.375)

Dimensions & Tires
FPS Wheelbase	136 inches 345 cm
CVT Wheelbase	138 inches 350 cm
Weight	22200 lbs 10069 kg
Front tire	420/85R34
Rear tire	480/80R50
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Batteries	2
Battery volts	12

References
Genesis T8 Series Tractors published in 2014, by New Holland
Genesis T8 Series Tractors published in 2015, by New Holland

Engine

Engine Detail — 531 ci / 8.7 L Diesel

Manufacturer	FPT
Configuration	wastegate turbocharged diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	531 ci 8.7 L
Bore/Stroke	4.606x5.315 inches 117 x 135 mm
Emissions	Tier IV
Emission control	selective catalytic reduction (SCR)
Rated Power (gross)	250 hp 186.4 kW
Maximum Power (gross)	320 hp 238.6 kW
Fuel system	electronic high-pressure common rail
Cooling system	viscous fan
Rated RPM	2000
Starter	electric
Starter volts	12

New Holland T8.320 Engine

Transmission

Transmission options
18-speed full power shift
continuously variable transmission (CVT)
23-speed power shift creeper

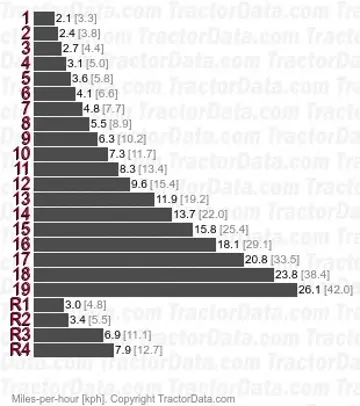

Transmission — Ultra-Command

Transmission	Ultra-Command
Type	full power shift
Gears	18 forward and 4 reverse
Clutch	electro-hydraulic wet discs
Available as 18-speed or 19-speed with ECO overdrive.

Transmission — Auto Command

Transmission	Auto Command
Type	continuously variable transmission (CVT)
Gears	infinite forward and reverse (4-range)
Type	power shift creeper
Gears	23 forward and 6 reverse

Dimensions

New Holland T8.320 Tires
Standard tires (ag)	Front: 420/85R34. Rear: 480/80R50

Dimensions
FPS Wheelbase	136 inches 345 cm
CVT Wheelbase	138 inches 350 cm
FPS Length	261 inches 662 cm
CVT Length	263 inches 668 cm
Height (cab)	132 inches 335 cm
Weight	22200 lbs 10069 kg
Max weight	27734 lbs 12580 kg
Front axle	MFWD
Front axle	Terraglide
Bar rear axle	4 by 120 inches 101 by 3048 mm
Bar rear axle	4.5 by 120 inches 114 by 3048 mm
Front tread	60 to 88 inches 152 to 223 cm

Tests

OCED Tractor Test 2122
Diesel Power shift 4WD September 1 - 17, 2015 Link: OCED Tractor Test 2122 file
PTO performance
Max power	261.49 hp 195.0 kW
Fuel use	13.5 gal/hour 51.1 l/hour
Power at rated engine speed	215.51 hp 160.7 kW
Fuel use	11.9 gal/hour 45.0 l/hour
Power at rated PTO speed	261.49 hp 195.0 kW
Fuel use	13.5 gal/hour 51.1 l/hour
Drawbar performance
Max power	183.85 hp 137.1 kW
Fuel use	11.7 gal/hour 44.3 l/hour
Gear 8 used for power test.
Max pull	20729 lbs 9402 kg
Gear 4 used for pull test.

Photos

New Holland T8.320 tractor photo
