New Holland TC48DA

The New Holland TC48DA is a tractor produced by New Holland. It is equipped with a 135.2 ci 2.2 L engine. The listed engine power is Diesel (gross): 48 hp / 35.8 kW. Transmission: 12 forward and reverse. Operating weight: 1468 lbs 665 kg.

Engine Power

Diesel (gross): 48 hp / 35.8 kW

Fuel & Capacities

13.5 gal 51.1 L

Transmission

12 forward and reverse

Operating Weight

4,315 lbs (4WD ROPS) 1957 kg

Overview

	2003 - 2008 Boomer TC-A SeriesCompact Utility tractor Boomer TC-A Series Compact Utility tractor

Production
Manufacturer	New Holland
Compact Utility tractor
The New Holland Boomer TC48DA was unable to make the advertised 3-point lift of 3,465 pounds or 12 GPM of hydraulic flow during official testing. Measured performance was a lift of 2,789 pounds and a flow rate of 11.3 GPM.

Variants
Farmall DX48	similar CaseIH model

New Holland TC48DA Engine
Shibaura 2.2L 4-cyl diesel
Fuel tank	13.5 gal 51.1 L
Engine details ...

New Holland TC48DA Transmission
12-speed synch shuttle
Transmission details ...

New Holland TC48DA Power
Engine (gross)	48 hp 35.8 kW
PTO (claimed)	40 hp 29.8 kW
PTO (tested)	40.98 hp 30.6 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Differential mechanical wet disc brakes
Two-post folding ROPS. Canopy optional.

Hydraulics
Type	open center
Valves	3 OptOptional
Total flow	12 gpm*Advertised. Flow during testing was 11.3 GPM. 45.4 lpm
Steering flow	5.52 gpm 20.9 lpm

Tractor hitch
Rear Type	II/I
Rear lift (at 24"/610mm)	3465 lbs 1571 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2475

Dimensions & Tires
Wheelbase	74.8 inches 189 cm
Weight	4,315 lbs 1957 kg
Front tire	9.5L-15
Rear tire	14.9-28
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

BOOMER Tractor Implements, Attachments and Accessories published in 2005, by New Holland
Boomer 18 to 55 HP Tractors published in 2004, by New Holland
BOOMER 18 To 55 HP Tractors published in 2005, by New Holland

Engine

Engine Detail — 135.2 ci / 2.2 L Diesel

Manufacturer	Shibaura N844L
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled inline
Displacement	135.2 ci 2.2 L
Bore/Stroke	3.307x3.937 inches 84 x 100 mm
Power (gross)	48 hp 35.8 kW
Air cleaner	dual dry element
Compression	22.4:1
Rated RPM	2800
Starter volts	12

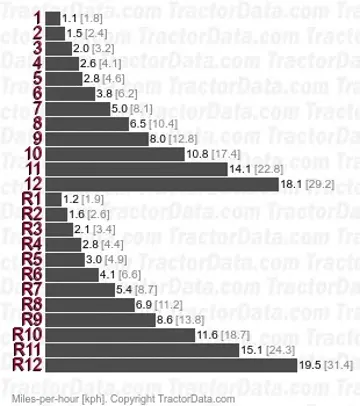

Transmission

Transmission — 12 forward and reverse synch shuttle

Type	synch shuttle
Gears	12 forward and reverse

Dimensions

New Holland TC48DA Tires
Ag front	9.5L-15
Ag rear	14.9-28
Ag front	8-16 (4WD)
Ag rear	14.9-24
Lawn/turf front	27x10.5-15R3
Lawn/turf rear	44x18-20R3
Industrial front	11L-15SL
Industrial rear	18.4-24R4

Dimensions
Wheelbase	74.8 inches 189 cm
Length	137.3 inches 348 cm
Width	64.4 inches 163 cm
Height	91 inches 231 cm
Operating weight	4,315 lbs (4WD ROPS) 1957 kg

Tests

Nebraska Tractor Test 1836
Diesel 12-speed 4WD April 27 - 30, 2004 Link: Nebraska Tractor Test 1836 file
PTO performance
Power at rated engine speed	40.98 hp 30.6 kW
Fuel use	3.4 gal/hour 12.9 l/hour
Power at rated PTO speed	38.56 hp 28.8 kW
Fuel use	3.0 gal/hour 11.4 l/hour

Attachments

Attachment overview
Blade
Front-end loader
Backhoe

New Holland 759C Backhoe
Backhoe type	New Holland 759C Backhoe
Weight	1468 lbs 665 kg
Transport height	95 inches 241 cm
2-Foot flat digging depth	114 inches 289 cm
8-Foot flat digging depth	96 inches 243 cm
Reach from pivot	149 inches 378 cm
Loading height	96 inches 243 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	4400 lbs 1995 kg
Dipperstick force	2800 lbs 1270 kg

Photos

New Holland TC48DA tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for New Holland TC48DA based on its 48 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)	Medium Duty	Standard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland TC48DA.

Estimated Continuous Field Runtime: 5.4 hrs

Approximately 5.4 hours of continuous field operation at ~75% rated power on a full tank (13.5 gal / 51.1 L).

Estimated 75% Load Fuel Burn~2.5 gal/hr (9.4 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
