New Holland TI4.50

The New Holland TI4.50 is a tractor produced by New Holland. It is equipped with a 127.1 ci 2.1 L engine. The listed engine power is Diesel (gross): 47 hp / 35.0 kW. Transmission: 12 forward and 4 reverse. Drive type: 4x4 4WD. Operating weight: 3638 lbs 1650 kg.

Engine Power

Diesel (gross): 47 hp / 35.0 kW

Drive & Traction

4x4 4WD

Fuel & Capacities

13.2 gal 50.0 L

Transmission

12 forward and 4 reverse

Operating Weight

3638 lbs 1650 kg

Overview

	2014 - 2017 TI4 SeriesOrchard/Vineyard tractorGoldoni built TI4 Series Orchard/Vineyard tractor Goldoni built

Production
Distributor	New Holland (a part of CNH)
Manufacturer	Goldoni
Orchard/Vineyard tractor
Built in Italy

New Holland TI4.50 Engine
VM Motori 2.1L 3-cyl diesel
Fuel tank	13.2 gal 50.0 L
Engine details ...

New Holland TI4.50 Power
Engine (gross)	47 hp 35.0 kW

Mechanical
Drive	4x4 4WD
Final drives	mechanical front and rear
Hydraulic wet disc brakes
Two-post folding mid-mount ROPS.

Hydraulics
Valves	2
Pump flow	10 gpm 37.9 lpm

Tractor hitch
Rear Type	I/IN
Rear lift	3307 lbs 1500 kg

Power Take-off (PTO)
Rear PTO	independent (rigid)
	transmission (articulated)
Clutch	electro-hydraulic wet disc (rigid)
	mechanical dry disc (articualted)
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	54 inches 137 cm
Weight	3638 lbs 1650 kg
Front tire	280/70-18
Rear tire	270/70-18
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

TI4 published in 2014, by New Holland

Engine

Engine Detail — 127.1 ci / 2.1 L Diesel

Manufacturer	VM Motori D703
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled inline
Displacement	127.1 ci 2.1 L
Bore/Stroke	3.70x3.94 inches 94 x 100 mm
Emissions	Stage 3A
Rated Power (gross)	47 hp 35.0 kW
Fuel system	direct injection
Rated RPM	2600
Starter type	electric

Transmission

Transmission options
16-speed
12-speed

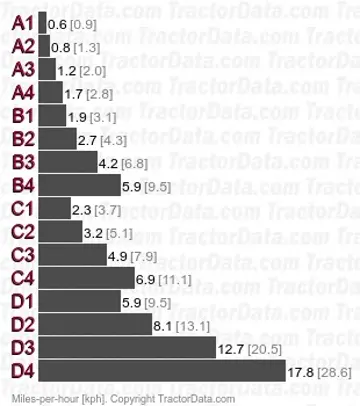

Transmission — 16 forward and reverse

Gears	16 forward and reverse
Clutch	230mm dry disc

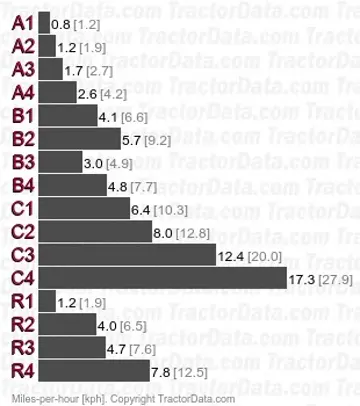

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse
Clutch	230mm dry disc

Dimensions

New Holland TI4.50 Tires
Standard tires (ag)	Front: 280/70-18. Rear: 270/70-18
Optional tires (ag)	Front: 300/70-20. Rear: 300/70-20

Dimensions
Wheelbase	54 inches 137 cm
Length	128 inches 325 cm
Width	56.1 inches (rigid) 142 cm
	47.1 inches (articulated) 119 cm
Weight	3638 lbs 1650 kg
Ground clearance	9.8 inches 24 cm
Front tread	40.2 to 50.4 inches 102 to 128 cm (rigid)
Front tread	34.3 to 44.9 inches 87 to 114 cm (articualted)
Rear tread	40.2 to 50.4 inches 102 to 128 cm (rigid)
Rear tread	34.3 to 44.9 inches 87 to 114 cm (articualted)

New Holland TI4.50 Height
Steering wheel	46.9 inches 119 cm
ROPS	83.9 inches (rigid) 213 cm
	85 inches (articulated) 215 cm

Photos

New Holland TI4.50 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for New Holland TI4.50 based on its 47 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)	Medium Duty	Standard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland TI4.50.

Estimated Continuous Field Runtime: 5.4 hrs

Approximately 5.4 hours of continuous field operation at ~75% rated power on a full tank (13.2 gal / 50 L).

Estimated 75% Load Fuel Burn~2.4 gal/hr (9.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
